panasonic

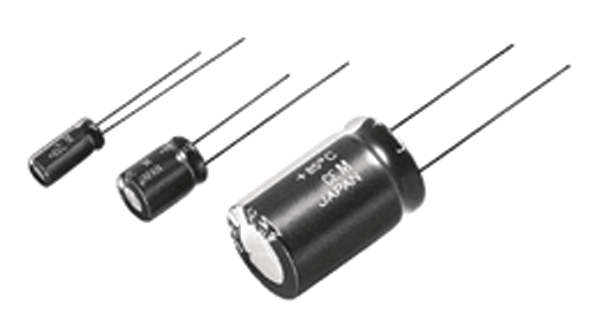

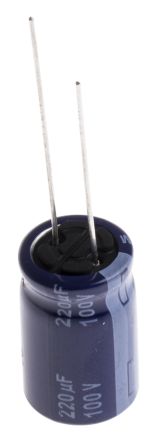

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装 | Through Hole |
| 电容值 | 220 uF |
| 电压 | 100 Vdc |
| 容差 | 20 % |
| 纹波电流 | 550 mA |
| 寿命 | 2000 h |
| 产品直径 | 12.5 mm |
| 产品高度 | 20 mm |
| 引脚间距为径向 | 5 mm |
| 工作温度 | -40 to 85 °C |
| 结构 | Aluminum Cylindrical Can |
| 端接类型 | Radial |
| 标准包装 | Bulk |
| 单位包 | 200 |
| 最小起订量 | 20000 |
| 产品范围 | :PANASONIC - M Series |
| 电容 | :220µF |
| 电容公差 | :± 20% |
| 额定电压 | :100V |
| 直径 | :12.5mm |
| 身高 | :20mm |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :5mm |
| Life Time @ Temperature | :2000 hours @ 85°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| External Length / Height | :20mm |
| 引线直径 | :0.6mm |
| 泄漏电流 | :220µA |
| No. of Pins | :2 |
| Operating Lifetime | :2000h |
| 工作温度范围 | :-40°C to +85°C |
| Ripple Current AC | :550mA |
| Ripple Current Frequency | :120Hz |
| Ripple Current Temperature | :85°C |
| 系列 | :M |
| 终端类型 | :Wire Ended |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Voltage Rating V DC | :100V |
| Weight (kg) | 0.001 |
| Tariff No. | 85322200 |
| CaseSize | 12.5mmDia.x20mmL |
| Material,Element | AluminumElectrolytic |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Operating,Minimum | –40°C |
| 端子 | Radial |
| Voltage,Rating | 100VDC |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
