panasonic

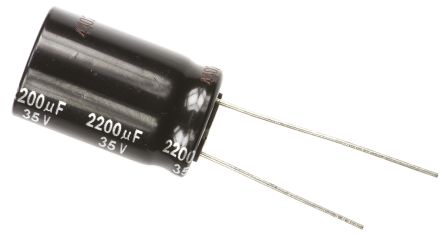

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装 | Through Hole |
| 电容值 | 2200 uF |
| 电压 | 35 Vdc |
| 容差 | 20 % |
| 纹波电流 | 1260 mA |
| 寿命 | 2000 h |
| 产品直径 | 16 mm |
| 产品高度 | 25 mm |
| 引脚间距为径向 | 7.5 mm |
| 工作温度 | -55 to 105 °C |
| 结构 | Aluminum Cylindrical Can |
| 端接类型 | Radial |
| 标准包装 | Bulk |
| 单位包 | 100 |
| 最小起订量 | 10000 |
| 产品范围 | :PANASONIC - NHG Series |
| 电容 | :2200µF |
| 电容公差 | :± 20% |
| 额定电压 | :35V |
| 直径 | :16mm |
| 身高 | :25mm |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :7.5mm |
| Life Time @ Temperature | :2000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| 引线直径 | :0.8mm |
| No. of Pins | :2 |
| Operating Lifetime | :2000h |
| 工作温度范围 | :-55°C to +105°C |
| Ripple Current AC | :1260mA |
| 系列 | :NHG |
| Weight (kg) | 0.001 |
| Tariff No. | 85322200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
