Panasonic Electric Works

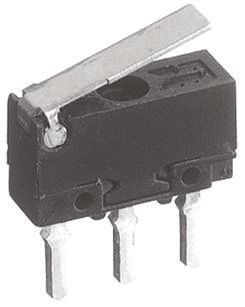

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| Differential Travel | 0.027" (0.7mm) |
| 开关功能 | On-Mom |
| 额定电流 | 100mA (DC) |
| 操作力，扭矩 | 25gf |
| 安装类型 | Through Hole |
| 端接类型 | PC Pin |
| 电气寿命 | 200,000 Cycles |
| 工作职位 | 0.228" (5.8mm) |
| 超程 | 0.015" (0.4mm) |
| 工作温度 | -25°C ~ 80°C |
| 执行器类型 | Lever, Straight |
| 标准包装 | 500 |
| 额定电压 - DC | 30V |
| 预行程 | 0.094" (2.4mm) |
| 机械寿命 | 300,000 Cycles |
| 电路 | SPDT |
| 联系配置 | SPDT |
| 触点额定电流 | 0.1 A @ 30 V dc |
| 触点材料 | Gold Plated |
| 最高工作温度 | +80°C |
| 最低工作温度 | -25°C |
| 操作力 | 0.25 N |
| 终端类型 | PCB |
| RoHS指令 | Compliant |
| Microswitch Type | :Snap Action |
| 执行器风格 | :Lever |
| 开关操作 | :(Not Applicable) |
| Operating Force Max | :0.25N |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :100mA |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Lever |
| Contact Current @ Contact Voltage DC Max | :100mA |
| Contact Current AC | :500mA |
| Contact Current DC Max | :100mA |
| 接触电阻 | :200mohm |
| Contact Voltage DC Max | :30V |
| Differential Travel Max | :0.7mm |
| 外部深度 | :2.5mm |
| External Length / Height | :4.5mm |
| 外宽 | :7.5mm |
| Fixing Centres LxW | :4mm |
| 绝缘电阻 | :100Mohm |
| No. of Electrical Operations | :200000 |
| No. of Mechanical Operations | :300000 |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-25°C |
| Over Travel Min | :0.4mm |
| Pre-travel | :2.4mm |
| 系列 | :AV4 |
| Weight (kg) | 0.016 |
| Tariff No. | 85365080 |
