Panasonic Electric Works

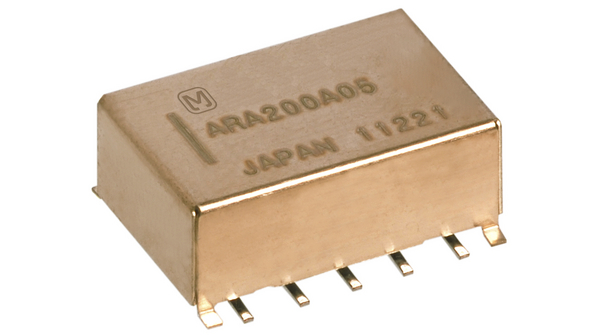

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 触点形式 | 2 Form C (DPDT-BM) |
| 触点额定电流 | 1 A |
| 线圈电压 | 1.5 VDC |
| 线圈类型 | Single Side Stable |
| 频率 | 1 GHz |
| 功耗 | 140 mW |
| 端接类型 | Solder Pad |
| 隔离 | 30 dB at 1 GHz |
| 插入损耗 | 0.3 dB at 1 GHz |
| 线圈电流 | 93.8 mA |
| 线圈电阻 | 16 Ohms |
| 联系额定值 | 10 mA at 10 VDC / 1 A at 30 VDC |
| 封装 | Tube |
| 工厂包装数量 | 40 |
| 驻波比 | 1.2 at 1 GHz |
| 开启电压（最大值） | 1.13 VDC |
| 关闭电压（最小值） | 0.15 VDC |
| 线圈功率 | 140 mW |
| 继电器类型 | RF |
| 切换电压 | 30VDC - Max |
| 释放时间 | 4ms |
| 工作温度 | -40°C ~ 85°C |
| 操作时间 | 4ms |
| 触点额定值（电流） | 1A |
| 标准包装 | 40 |
| 安装类型 | Surface Mount |
| 触点材料 | Silver Palladium (AgPd), Gold (Au) |
| RoHS指令 | Lead free / RoHS Compliant |
| 最大开关电流 | 1 A |
| 操作功能 | Single Side Stable |
| Vibration resistance - Destructive | 10 to 55 Hz at double amplitude of 5 mm |
| Contact rating (resistive) | 10mA 10 V DC, 1A 30 V DC |
| 安装 | SMD |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - Insertion loss | Max. 0.3dB |
| 电流 | 1 Amp |
| Temperature rise (at 20C) | Max. 60°C |
| Release time (without diode) [Reset time] (at 20C) | Max. 4ms (Approx. 1ms) [Max. 4ms (Approx. 2ms)] |
| Vibration resistance - Functional | 10 to 55 Hz at double amplitude of 3 mm |
| Initial breakdown voltage - Between contact and earth terminal | Max. 4ms (Approx. 2ms), [Max. 4ms (Approx. 2ms)] |
| Initial breakdown voltage - Between contact sets | 1,000 Vrms for 1 min. |
| Initial breakdown voltage - Between contact and coil | 1,000 Vrms for 1 min. |
| Coil resistance, (10%) | 16 ohm |
| Initial insulation resistance | Min. 100 Mohm (at 500 V DC) |
| Conditions for operation, transport and storage (Not freezing and condensing at low temperature) - Ambient temp | 40°C to +85°C, 40°F to +185°F |
| Packing | Tube packing |
| Expected life (min operations) -Electrical (at 20 cpm) | 10mA 10 V DC (resistive load): 10^7, 1A 30 V DC (resistive load): 10^5 |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 750 Vrms for 1 min. |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - Isolation: Between open contacts | Min. 20dB |
| Nominal operating power - | 140mW (1.5 to 12V), 200mW (24V), 300mW (48V) |
| Pick-up voltage, (max) (initial) | 1.125 VDC |
| Contact material | Gold-clad silver alloy |
| SubCategory | High Frequency Relays |
| Nominal operating power | 140 mW |
| Operate time [Set time] (at 20C) | Max. 4ms (Approx. 2ms) [Max. 4ms (Approx. 2ms)] |
| Max switching current | 1A |
| 联系配置 | 2C DPDT |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - Isolation Between contact sets | Min. 30dB |
| Contact carrying power | Max. 3W (at 1.0GHz, impedance 50ohm, V.S.W.R. max.1.2) |
| Max allowable voltage | 2.25 VDC |
| Shock resistance - Functional | Min. 500 m/s^2 |
| Max switching voltage | 30 V DC |
| Initial contact resistance (By voltage 6V DC 1A) | Max. 75mohm |
| Nominal operating current, (10%) | 93.8 mA |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - VSWR | Max. 1.2 |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - Input power | Max. 3W (at 1.0GHz, impedance 50ohm, V.S.W.R. max.1.2) |
| Expected life (min operations) - Mechanical (at 180 cpm) | 10^8 |
| Drop-out voltage, (min)(initial) | 0.15 VDC |
| Shock resistance - Destructive | Min. 1,000 m/s^2 |
| Dimensions L x W x H | 14.7 x 9.7 x 5.9 mm |
| Ucoil | 1.5 |
| Rcoil | 16 |
| 插入损耗 | 0.3 dB@ 1.0 GHz |
| 联系方式 | 2 change-over (CO) |
| Pcoil | 140 |
| 系列 | ARA |
| Switching current | 1 A |
| Relay type | Monostable |
| 测试电压 | 0.75 |
| Switching voltage | 30 |
| 连接方式 | SMD |
| Temperature range | -40...+85 °C |
| 阻抗 | 50 |
| Crosstalk attenuation | 20 dB@ 1.0 GHz |
| Voltage standing wave ratio (VSWR) | 1.25@ 1 GHz |
