Panasonic Electric Works

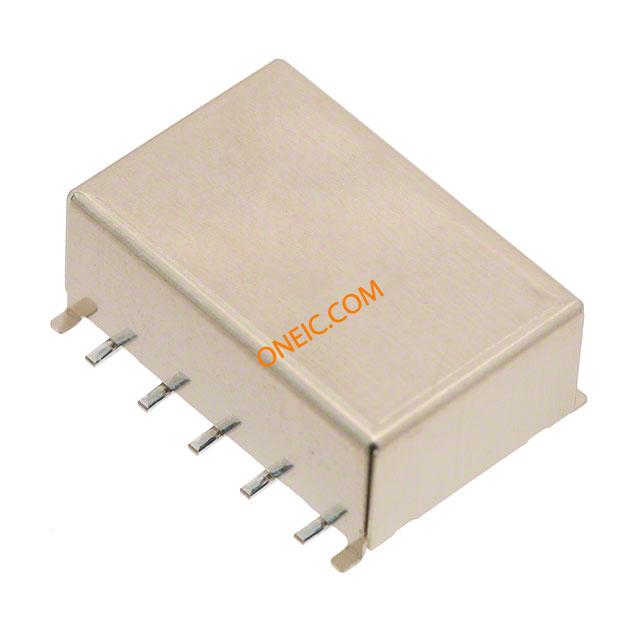

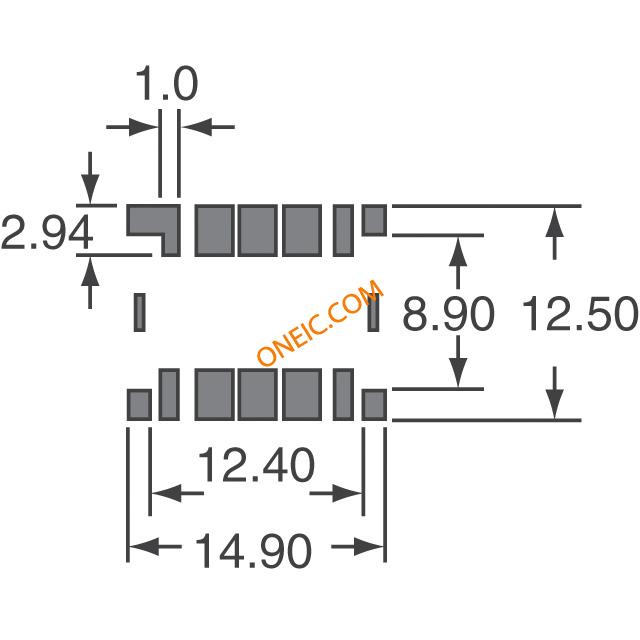

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | High Frequency / RF Relays |
| RoHS | RoHS Compliant By Exemption |

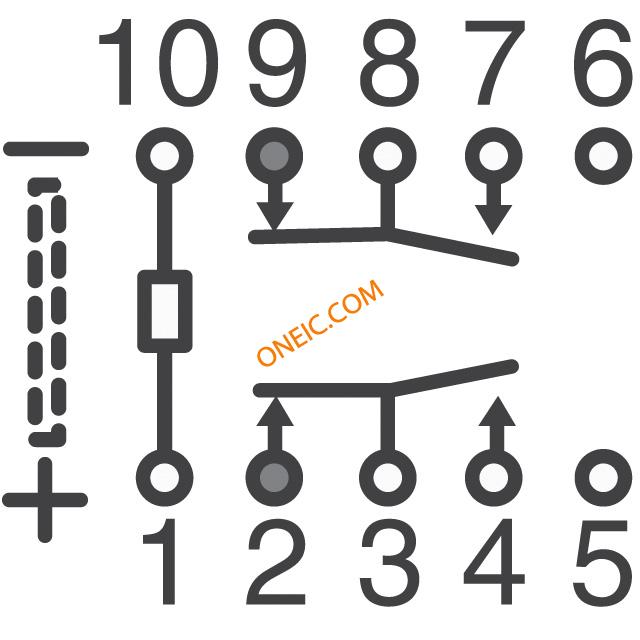

| 触点形式 | 2 Form C (DPDT-BM) |
| 触点额定电流 | 1 A |
| 线圈电压 | 5 VDC |
| 线圈类型 | Single Side Stable |
| 频率 | 1 GHz |
| 功耗 | 140 mW |
| 端接类型 | Solder Pad |
| 隔离 | 30 dB at 1 GHz |
| 插入损耗 | 0.3 dB at 1 GHz |
| 线圈电流 | 28.1 mA |
| 线圈电阻 | 178 Ohms |
| 联系额定值 | 10 mA at 10 VDC / 1 A at 30 VDC |
| 封装 | Tube |
| 工厂包装数量 | 40 |
| 驻波比 | 1.2 at 1 GHz |
| 继电器结构 | Non-Latching |
| 线圈抑制二极管 | No |
| 安装 | Surface Mount |
| 最大额定电流 | 1 |
| 最大直流额定电压 | 30 |
| 最小压差电压 | 0.5VDC |
| 类型 | High Frequency Relay |
| 线圈电流 | 28.1 |
| 触点形式 | DPDT |
| 推到测试按钮 | No |
| 最低工作温度 | -40 |

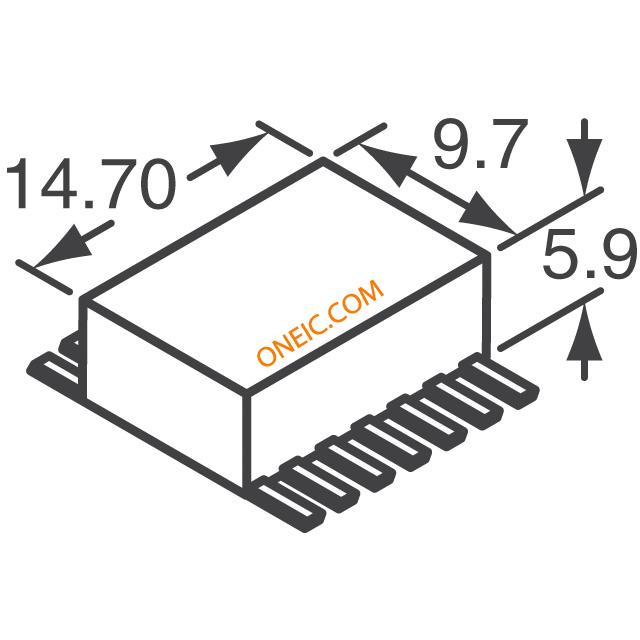

| 产品长度 | 14.7 |
| 最高工作温度 | 85 |
| 欧盟RoHS指令 | Compliant |
| 线圈电阻 | 178 |
| Operate Time | 4 |
| DC Coil Voltage | 5 |
| 产品厚度 | 11.5 |
| 端子数 | 10 |
| 产品高度 | 5.9 |
| 密封 | Unsealed |
| 最大吸合电压 | 3.75VDC |
| LED指示灯 | No |
| 触点材料 | Silver Palladium |
| 开启电压（最大值） | 3.75 VDC |
| 关闭电压（最小值） | 0.5 VDC |
| 线圈功率 | 140 mW |
| 继电器类型 | RF |
| 切换电压 | 30VDC - Max |
| 释放时间 | 4ms |
| 工作温度 | -40°C ~ 85°C |
| 操作时间 | 4ms |
| 触点额定值（电流） | 1A |
| 标准包装 | 40 |
| 安装类型 | Surface Mount |
| RoHS指令 | Lead free / RoHS Compliant |
| 最大开关电流 | 1 A |
| 工作温度范围 | -40C to 85C |
| 吸合电压（最大值） | 3.75VDC |
| 引脚数 | 10 |
| 漏失电压（最小值） | 0.5VDC |
| 弧度硬化 | No |
| 安装风格 | Surface Mount |
| 额定电压（ VDC ） | 30V |
| 产品长度（mm ） | 14.7 mm |
| 产品厚度（毫米） | 11.5 mm |
| 产品高度（mm ） | 5.9 mm |
| 线圈电压DC | 5V |
| 推到测试按钮 | No |
| 删除 | Compliant |
| 漏失电压 | 0.5VDC |
| 操作功能 | Single Side Stable |
| Vibration resistance - Destructive | 10 to 55 Hz at double amplitude of 5 mm |
| Contact rating (resistive) | 10mA 10 V DC, 1A 30 V DC |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - Insertion loss | Max. 0.3dB |
| 电流 | 1 Amp |
| Temperature rise (at 20C) | Max. 60°C |
| Release time (without diode) [Reset time] (at 20C) | Max. 4ms (Approx. 1ms) [Max. 4ms (Approx. 2ms)] |
| Vibration resistance - Functional | 10 to 55 Hz at double amplitude of 3 mm |
| Initial breakdown voltage - Between contact and earth terminal | Max. 4ms (Approx. 2ms), [Max. 4ms (Approx. 2ms)] |
| Initial breakdown voltage - Between contact sets | 1,000 Vrms for 1 min. |
| Initial breakdown voltage - Between contact and coil | 1,000 Vrms for 1 min. |
| Coil resistance, (10%) | 178 ohm |
| Initial insulation resistance | Min. 100 Mohm (at 500 V DC) |
| Conditions for operation, transport and storage (Not freezing and condensing at low temperature) - Ambient temp | 40°C to +85°C, 40°F to +185°F |
| Packing | Tube packing |
| Expected life (min operations) -Electrical (at 20 cpm) | 10mA 10 V DC (resistive load): 10^7, 1A 30 V DC (resistive load): 10^5 |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 750 Vrms for 1 min. |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - Isolation: Between open contacts | Min. 20dB |
| Nominal operating power - | 140mW (1.5 to 12V), 200mW (24V), 300mW (48V) |
| Pick-up voltage, (max) (initial) | 3.75 VDC |
| Contact material | Gold-clad silver alloy |
| SubCategory | High Frequency Relays |
| Nominal operating power | 140 mW |
| Operate time [Set time] (at 20C) | Max. 4ms (Approx. 2ms) [Max. 4ms (Approx. 2ms)] |
| Max switching current | 1A |
| 联系配置 | 2C DPDT |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - Isolation Between contact sets | Min. 30dB |
| Contact carrying power | Max. 3W (at 1.0GHz, impedance 50ohm, V.S.W.R. max.1.2) |
| Max allowable voltage | 7.5 VDC |
| Shock resistance - Functional | Min. 500 m/s^2 |
| Max switching voltage | 30 V DC |
| Initial contact resistance (By voltage 6V DC 1A) | Max. 75mohm |
| Nominal operating current, (10%) | 28.1 mA |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - VSWR | Max. 1.2 |
| High frequency characteristics (~1GHz, Impedance 50ohm) (Initial) - Input power | Max. 3W (at 1.0GHz, impedance 50ohm, V.S.W.R. max.1.2) |
| Expected life (min operations) - Mechanical (at 180 cpm) | 10^8 |
| Drop-out voltage, (min)(initial) | 0.5 VDC |
| Shock resistance - Destructive | Min. 1,000 m/s^2 |
| 导通电压（最大值） | 3.75 VDC |
| 关闭电压（最小值） | 0.5 VDC |
| 系列 | ARA |
| 继电器类型 | RF |
| 开关电压 | 30VDC - Max |
| 额定接触（电流） | 1A |
| 线圈电压 | 5VDC |
| 释放时间 | 4ms |
| 线圈类型 | Non Latching |
| 接触点外形 | DPDT (2 Form C) |
| 线圈电流 | 28.1mA |
| 工作时间 | 4ms |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
