Panasonic Electric Works

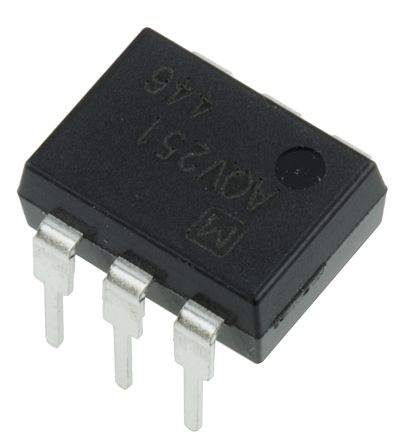

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant By Exemption |
| 控制电压范围 | 1.5 V to 5 V |
| 额定负载电压 | 40 V |
| 额定负载电流 | 500 mA |
| 触点形式 | 1 Form A (SPST-NO) |
| 输出设备 | MOSFET |
| 封装/外壳 | DIP-6 |
| 安装风格 | Through Hole |
| 输入到输出绝缘方法 | Photocoupler |
| 开启电阻（最大值） | 0.6 Ohms |
| 封装 | Bulk |
| 产品类型 | PCB Mount |
| 工厂包装数量 | 50 |
| 端接类型 | Solder Pin |
| 供应商封装形式 | DIP |
| 标准包装名称 | DIP |
| 欧盟RoHS指令 | Compliant |
| I/O Isolation Voltage | 1500 |
| 输入类型 | DC |
| 线路安排 | 1 Form A |
| 安装 | Through Hole |
| 最大输入电流 | 50 |
| 输出类型 | AC|DC |
| 最大输入电压 | 1.5 |
| 最大输出电流 | 0.5 |
| Package Width | 6.4 |
| Maximum Output Voltage | 40 |
| PCB | 6 |
| 最高工作温度 | 85 |
| 最低工作温度 | -40 |
| Package Length | 8.8 |
| 引脚数 | 6 |
| 铅形状 | Through Hole |
| 继电器类型 | Relay |
| 安装类型 | Through Hole |
| 负载电流 | 500mA |
| 电压 - 负载 | 0 ~ 40 V |
| 供应商设备封装 | 6-DIP |
| 导通状态电阻 | 1 Ohm |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 50 |
| 电压 - 电压 | 1.14VDC |
| 封装/外壳 | 6-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 输入电流类型 | DC |
| 隔离电压 | 1500 V |
| 最大输入电流 | 50 mA |
| 针脚数 | 6 |
| 包装类型 | DIP |
| 导通电阻 - 最大 | 0.6 Ohms |
| 输入电流 | 50 mA |
| 工作温度范围 | -40C to 85C |
| 工作温度分类 | Industrial |
| 输入电压（最大值） | 1.5 V |
| 输出电压（最大值） | 40 V |
| 输入电流（最大） | 50 mA |
| 输出电流 | 500 mA |
| 弧度硬化 | No |
| 输入电压 | 1.5 V |
| Load Voltage Max | :40V |
| On State Resistance Max | :1ohm |
| 联系配置 | :SPST-NO |
| Forward Current If | :900µA |
| Relay Terminals | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Category | :UL Recognised |
| Control Current Max | :3mA |
| Control Current Typ | :0.9mA |
| Control Current Voltage | :1.25V |
| Control Voltage DC Max | :1.5V |
| 外部深度 | :6.4mm |
| External Length / Height | :3.9mm |
| 外宽 | :8.8mm |
| I/O Capacitance | :3pF |
| 绝缘电阻 | :1000Mohm |
| 泄漏电流 | :1µA |
| Load Current RMS Max | :500mA |
| Load Voltage DC Max | :40V |
| Load Voltage Range | :40V |
| No. of Pins | :6 |
| RMS Load Voltage Max | :40V |
| 系列 | :AQV250 |
| 终端类型 | :PCB |
| 端接方式 | :Through Hole |
| 关闭时间 | :0.07ms |
| 开启时间 | :1.7ms |
| Weight (kg) | 0.01 |
| Tariff No. | 85365005 |
| 应用 | High-speedinspectionmachines,telephoneequipment,datacommunicationequipment |
| 电容 | 3pF |
| Capacitance,Output | 1.3pF(Typ.) |
| ContactForm | SPST-NO |
| CurrentRating | 0.500A |
| Current,Leakage | 1μA |
| Current,Rating | 500mA |
| 功能 | General-Purpose |
| MountingType | PCB |
| NumberofPins | 6 |
| 包装 | DIP-6 |
| PackageType | DIP |
| RelayType | HEPhotoMOS |
| Resistance,On-State | 0.6Ohms(Typ.),Output |
| 标准 | cULus |
| Temperature,Operating,Minimum | -40°C |
| 端子 | ThroughHole |
| Voltage,Rating | 40V |
