Panasonic Electric Works

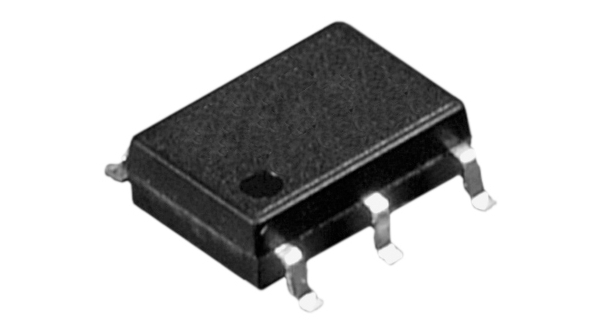

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant By Exemption |
| 控制电压范围 | 1.5 V to 5 V |
| 额定负载电压 | 400 V |
| 额定负载电流 | 100 mA |
| 触点形式 | 1 Form A (SPST-NO) |
| 输出设备 | MOSFET |
| 封装/外壳 | SOP-6 |
| 安装风格 | SMD/SMT |
| 输入到输出绝缘方法 | Photocoupler |
| 开启电阻（最大值） | 30 Ohms |
| 封装 | Tube |
| 产品类型 | PCB Mount |
| 工厂包装数量 | 75 |
| 端接类型 | Solder Pad |
| 输入类型 | DC |
| 安装 | Surface Mount |
| Maximum Off-State Leakage Current | 1 |
| Package Width | 4.4 |
| PCB | 6 |
| 欧盟RoHS指令 | Compliant |
| Maximum Turn-Off Time | 0.2 |
| 最大输入电流 | 50 |
| 输出类型 | AC|DC |
| 最大输出电压 | 400 |
| 最低工作温度 | -40 |
| 供应商封装形式 | SOP |
| 标准包装名称 | SOIC |
| 最高工作温度 | 85 |
| Package Length | 6.3 |
| 引脚数 | 6 |
| I / O隔离电压 | 1500 |
| 线路安排 | 1 Form A |
| Package Height | 2.1 |
| 最大输出电流 | 0.1 |
| Maximum Turn-On Time | 0.5 |
| Maximum Input Voltage | 1.5 |
| 铅形状 | Gull-wing |
| 继电器类型 | Relay |
| 安装类型 | Surface Mount |
| 负载电流 | 100mA |
| 电压 - 负载 | 0 ~ 400 V |
| 供应商设备封装 | 6-SOP |
| 导通状态电阻 | 50 Ohm |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 75 |
| 电压 - 电压 | 1.14VDC |
| 封装/外壳 | 6-SOP (0.173", 4.40mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 导通电阻 - 最大 | 30 Ohms |
| 输入电流 | 50 mA |
| 工作温度范围 | -40C to 85C |
| 包装类型 | SOP |
| 工作温度分类 | Industrial |
| 输入电压（最大值） | 1.5 V |
| 输出电压（最大值） | 400 V |
| 输入电流（最大） | 50 mA |
| 隔离电压 | 1500 V |
| 输出电流 | 100 mA |
| 弧度硬化 | No |
| 输入电压 | 1.5 V |
| 应用 | Telephones,measuringinstruments,computer,industrialrobots,high-speedinspectionmachines |
| 电容 | 1.5pF |
| Capacitance,Output | 0.8pF(Typ.) |
| ContactForm | SPST-NO |
| CurrentRating | 0.100A |
| Current,Leakage | 1μA |
| Current,Rating | 100mA |
| 功能 | General-Purpose |
| MountingType | SMD |
| NumberofPins | 6 |
| 包装 | SOP-6 |
| PackageType | SO |
| RelayType | PhotoMOS |
| Resistance,On-State | 30Ohms(Typ.),Output |
| 标准 | cULus |
| Temperature,Operating,Minimum | -40°C |
| 端子 | SurfaceMount |
| Voltage,Rating | 400VAC/VDC |
| 接触电阻 | 30 |
| Switching voltage | 400 |
| 联系方式 | 1 make contact (NO) |
| Switched current | 100 |
| LED off-state voltage | 5 |
| 测试电压 | 1.5 |
| 设计 | SMD |
| Temperature range | -40...+85 °C |
| LED threshold voltage | 1.14 |
| LED operating current | 0.7 |
| LED maximum current | 50 |
