Panasonic Electric Works

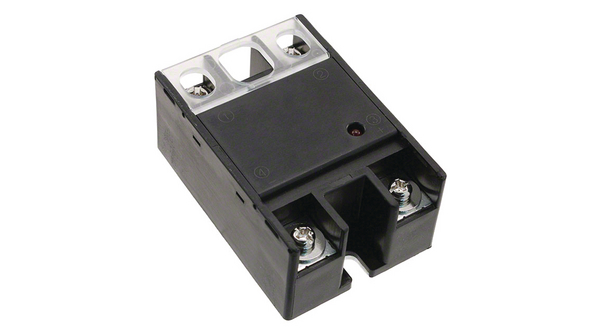

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - Industrial Mount |
| RoHS | RoHS Compliant |
| 控制电压范围 | 4 VDC to 32 VDC |
| 额定负载电压 | 75 VAC to 250 VAC |
| 额定负载电流 | 40 A |
| 输出设备 | SSR |
| 安装风格 | DIN Rail |
| 封装 | Bulk |
| 产品类型 | Industrial Mount |
| 端接类型 | Screw |
| 继电器类型 | Relay |
| 安装类型 | Chassis Mount or Panel Mount |
| 负载电流 | 40A |
| 电压 - 负载 | 75 ~ 250 V |
| 输出类型 | AC, Zero Cross |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 2 |
| 电压 - 电压 | 4 ~ 32VDC |
| 其他名称 | 255-2981 |
| 封装/外壳 | Hockey Puck |
| RoHS指令 | Lead free / RoHS Compliant |
| Operating Voltage Min | :75VAC |
| Operating Voltage Max | :250VAC |
| Control Voltage DC Min | :4VDC |
| Control Voltage DC Max | :32VDC |
| 联系配置 | :(Not Applicable) |
| 切换模式 | :Zero Crossing |
| Relay Terminals | :Screw |
| SVHC | :No SVHC (20-Jun-2013) |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-20°C |
| Operating Voltage Range | :75V AC to 250V AC |
| Weight (kg) | 0.087 |
| Tariff No. | 85364900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
