Panasonic Electric Works

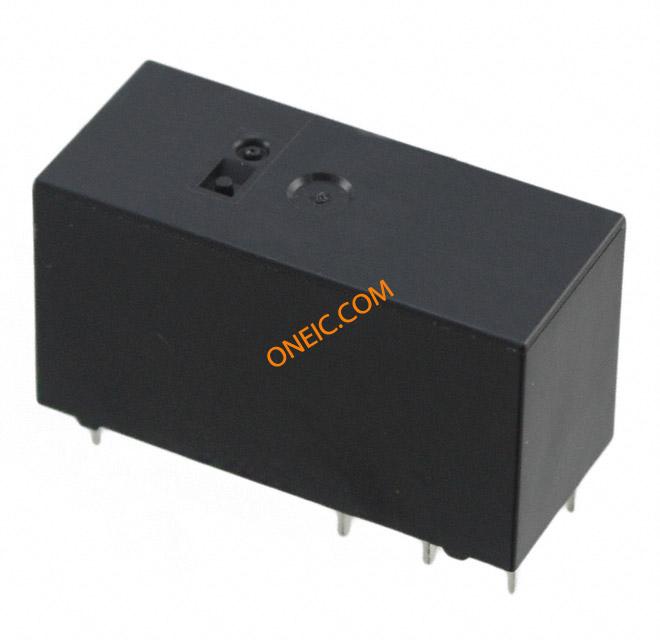

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线圈电流 | 33.3mA |
| 线圈电压 | 12VDC |
| 开启电压（最大值） | 8.4 VDC |
| 产品特点 | Insulation - Class F, Sealed - Flux Protection |
| 线圈类型 | Non Latching |
| 关闭电压（最小值） | 1.2 VDC |
| 线圈功率 | 400 mW |
| 触点形式 | SPST-NO (1 Form A) |
| 继电器类型 | General Purpose |
| 端接类型 | PC Pin |
| 切换电压 | 440VAC - Max |
| 释放时间 | 5ms |
| 封装 | Bulk |
| 工作温度 | -40°C ~ 105°C |
| 操作时间 | 15ms |
| 触点额定值（电流） | 16A |
| 标准包装 | 100 |
| 安装类型 | Through Hole |
| 触点材料 | Silver Tin Oxide (AgSnO) |
| 线圈电阻 | 360 Ohms |
| Initial contact resistance, max (By voltage drop 6 V DC 1 A) | 100 mohm |
| Min switching capacity | 100 mA, 5 V DC |
| 操作功能 | Single Side Stable |
| 安装 | PC Board |
| Max switching power | 4,000 V A |
| Unit weight | Approx. 12 g .42 oz |
| Initial breakdown voltage - Between contacts and coil | 5,000 Vrms for 1 min. |
| 电流 | 16 Amps |
| Nominal switching capacity | 16 A 250 V AC |
| Coil resistance, (10%) | 360 ohm |
| Initial insulation resistance | Min. 1,000 Mohm (at 500 V DC) |
| Coil insulation class | Class F |
| Operate time (at nominal voltage) | Max. 15ms (at 20C 68F) |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 1,000 Vrms for 1 min. |
| Max allowable voltage | 15.6 VDC |
| Destructive Shock Resistance | Min. 1,000 m/s^2{approx. 100 G} |
| Contact material | Silver alloy |
| Expected life (min operations) - Electrical (at 20 cpm) (at rated load) | N.O.: 10^5, N.C.: 5 10^4 |
| Max operating speed | 20 cpm (at rated load) |
| Nominal operating power | 400 mW |
| Drop-out voltage (min)(Initial) | 1.2 VDC |
| Max switching current | 16 A |
| SubCategory | Power Relay |
| 湿度 | 5 to 85% R.H. |
| Temperature rise (20C 68C) | Max. 55C with nominal coil voltage and at 16 A contact carrying current (resistance method) |
| Release time (with diode) (at nominal voltage) | Max. 5ms (at 20C 68F) |
| Functional Shock Resistance | Min. 100 m/s^2{approx. 10 G} |
| 联系配置 | 1A SPST-NO |
| Destructive Vibration resistance | 10 to 55Hz at double amplitude of 1.5mm |
| Initial surge voltage between contact and coil | Min. 10,000 V |
| Packing style | Carton packing |
| Pick-up voltage (max)(Initial) | 8.4 VDC |
| Ambient temp | 40C to +85C, 40F to +185F (Class B) |
| Max switching voltage | 440 V AC |
| Nominal operating current, (10%) | 33.3 mA |
| Expected life (min operations) - Mechanical (at 180 cpm) | 1 10^7 |
| Functional Vibration resistance | 10 to 55Hz at double amplitude of 1.5mm (NO), 0.82mm (NC) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
