panasonic electric works

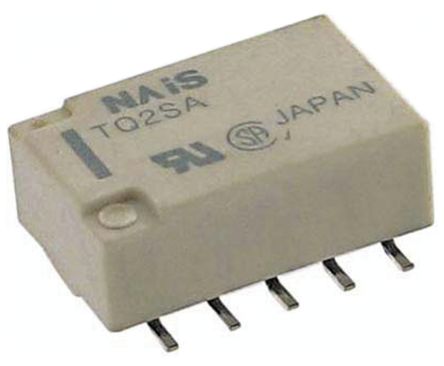

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | General Purpose Relay |
| 触点形式 | DPDT |
| 最大额定电流 | 2 A |
| 直流线圈电压 | 5 V |
| 安装 | Surface Mount |
| 线圈电流 | 28.1 mA |
| 线圈电阻 | 178 Ohm |
| 触点材料 | Silver Nickel/Gold Clad |
| 最大交流电压额定值 | 125 V |
| 最大直流额定电压 | 220 V |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Rail / Tube |
| 产品种类 | Low Signal Relays - PCB |
| RoHS | RoHS Compliant By Exemption |
| 触点形式 | 2 Form C (DPDT-BM) |
| 触点额定电流 | 2 A |
| 线圈电压 | 5 VDC |
| 最大开关电流 | 2 A |
| 线圈类型 | Single Side Stable |
| 功耗 | 140 mW |
| 端接类型 | Solder Pad |
| 隔离 | 20 dB at 1 GHz |
| 插入损耗 | 0.8 dB at 1 GHz |
| 联系额定值 | 2 A at 30 VDC / 500 mA at 125 VAC |
| 封装 | Tube |
| 工厂包装数量 | 50 |
| 开启电压（最大值） | 3.75 VDC |
| 关闭电压（最小值） | 0.5 VDC |
| 线圈功率 | 140 mW |
| 继电器类型 | Telecom |
| 切换电压 | 125VAC, 220VDC - Max |
| 释放时间 | 4ms |
| 操作时间 | 4ms |
| 触点额定值（电流） | 2A |
| 安装类型 | Surface Mount |
| RoHS指令 | Lead free / RoHS Compliant |
| 联系配置 | :DPCO |
| Contact Current Max | :2A |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :30V |
| Coil Voltage VDC Nom | :5V |
| Coil Power Cont | :140mW |
| Relay Mounting | :SMD |
| 外部高度 | :5.6mm |
| 外宽 | :14mm |
| 外部深度 | :9mm |
| SVHC | :No SVHC (20-Jun-2013) |
| MSL | :MSL 4 - 72 hours |
| Weight (kg) | 0.0014 |
| Tariff No. | 85364900 |
| Brand/Series | TQSeries |
| ContactForm | DPDT |
| CurrentRating | 2A |
| Current,Rating | 2A |
| DielectricRating | 1,000M≠(at500VDC) |
| 外形尺寸 | 0.551in.Lx0.354in.Wx0.220in.H |
| 功能 | Latching |
| LatchType | SingleSideStable |
| Material,Contact | Gold-CladSilverAlloy |
| MountingType | PCB |
| Power,Rating | 140mW |
| RelayType | ElectroMechanical |
| 标准 | UL,CSA |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Operating,Minimum | -40°C |
| 端子 | SurfaceMount |
| Voltage,Control | 5VDC |
| Voltage,Rating | 220VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
