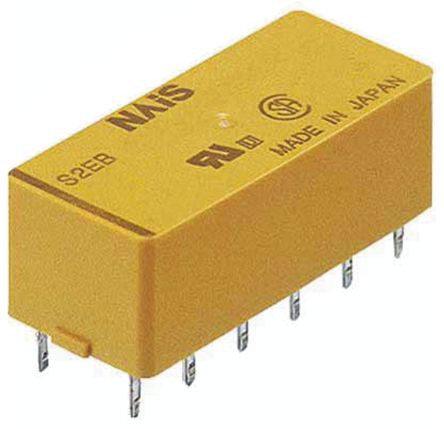

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | General Purpose Relay |
| 触点形式 | DPST-NO|DPST-NC |
| 最大额定电流 | 3DC|4AC A |
| 直流线圈电压 | 12 V |
| 安装 | Through Hole |
| 线圈电流 | 16.7 mA |
| 线圈电阻 | 720 Ohm |
| 触点材料 | Silver(Cadmium Free)/Gold Clad |
| 最大交流电压额定值 | 250 V |
| 最大直流额定电压 | 48 V |
| 工作温度 | -55 to 65 °C |
| 标准包装 | Bulk |
| 产品种类 | General Purpose Relays |
| RoHS | RoHS Compliant By Exemption |
| 触点形式 | 2 Form A (DPST-NO), 2 Form B (DPST-NC) |
| 线圈电压 | 12 V |
| 安装风格 | Through Hole |
| 线圈端接 | Solder Terminal |
| 线圈类型 | Single Side Stable |
| 接触端子 | Solder Terminal |
| 封装 | Bulk |
| 功耗 | 200 mW |
| 工厂包装数量 | 50 |
| 继电器结构 | Non-Latching |
| 线圈抑制二极管 | No |
| 端接类型 | PC Pin |
| 最大额定电流 | 3DC|4AC |
| 最大直流额定电压 | 48 |
| 最小压差电压 | 1.2VDC |
| 线圈电流 | 16.7 |
| 推到测试按钮 | No |
| 包装类型 | DIP |
| Minimum Operating Temperature | -55 |
| 产品长度 | 28 |
| Maximum Operating Temperature | 65 |
| 最大额定功率 | 90W|1kVA |
| 欧盟RoHS指令 | Compliant |
| 线圈电阻 | 720 |
| 操作时间 | 15 |
| 直流线圈电压 | 12 |
| Product Depth | 12 |
| 端子数 | 12 |
| 最大交流电压额定值 | 250 |
| 产品高度 | 10.4 |
| 密封 | Unsealed |
| 最大吸合电压 | 8.4VDC |
| LED指示灯 | No |
| 开启电压（最大值） | 8.4 VDC |
| 产品特点 | Sealed - Amber |
| 关闭电压（最小值） | 1.2 VDC |
| 线圈功率 | 200 mW |
| 继电器类型 | General Purpose |
| 切换电压 | 250VAC, 48VDC - Max |
| 释放时间 | 10ms |
| 操作时间 | 15ms |
| 触点额定值（电流） | 4A |
| 安装类型 | Through Hole |
| RoHS指令 | Lead free / RoHS Compliant |
| 工作温度范围 | -55C to 65C |
| 吸合电压（最大值） | 8.4VDC |
| 引脚数 | 12 |
| 漏失电压（最小值） | 1.2VDC |
| 弧度硬化 | No |
| 额定电压（VAC ） | 250V |
| 额定电压（ VDC ） | 30 V |
| 封装/外壳 | DIP |
| 产品长度（mm ） | 28 mm |
| 产品厚度（毫米） | 12 mm |
| 产品高度（mm ） | 10.4 mm |
| 线圈电压DC | 12V |
| 触点额定电流 | 3DC/4AC |
| 推到测试按钮 | No |
| 漏失电压 | 1.2VDC |
| Initial contact resistance, max (By voltage drop 6 V DC 1 A) | 50 mohm |
| Min switching capacity | 100?A 100 m V DC |
| Thermal electromotive force(at nominal coil voltage) | Approx. 3?V |
| 操作功能 | Single Side Stable |
| Drop-out voltage (min) | 1.2 VDC |
| Max switching power | 1,000 VA, 90 W |
| Initial breakdown voltage - Between contacts and coil | 1,500 Vrms |
| Max switching voltage | 250 V AC, 30 V DC (48 VDC at less than 0.5 A) |
| 电流 | 4 Amps |
| Initial breakdown voltage - Between contact sets | 1,000 Vrms |
| Release time (without diode) (at nominal voltage)(at 20C) | Max. 10 ms (Approx. 5 ms) |
| Nominal switching capacity | 4 A 250 V AC, 3 A 30 V DC |
| Expected life (min operations) - Electrical (at 20 cpm) | A 250 V AC: 10^5; 3 A 30 V DC: 2 10^5 |
| Electrostatic capacitance | Approx. 3pF |
| Temperature rise (at nominal voltage)(at 20C) | Max. 35C with nominal coil voltage and at maximum switching current |
| Expected life (min operations) - Mechanical (at 50 cps) | 10^8 |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 750 Vrms |
| Initial contact pressure | Approx. 12 g .42 oz |
| 电感 | 370 mH |
| Destructive Shock Resistance | Min. 980 m/s^2 {100 G} |
| Contact material | Gold clad silver alloy |
| Maximum allowable voltage (40C) | 22 VDC |
| Pick-up voltage (max) | 8.4 VDC |
| Max operating speed | 20 cpm for maximum load, 50 cps for low-level load (1 mA 1 V DC) |
| Classification of type | Amber sealed type |
| Max switching current | 4 A (AC), 3 A (DC) |
| SubCategory | General Purpose Relay |
| 联系配置 | 2A+2B DPST-NO+DPST-NC |
| Coil resistance, (10%) | 720 ohm |
| Reset time (latching) (at nominal voltage)(at 20C) | Max. 15 ms (Approx. 8 ms) |
| Functional Shock Resistance | Min. 490 m/s^2 {50 G} |
| Set time (latching) (at nominal voltage)(at 20C) | Max. 15 ms (Approx. 8 ms) |
| Initial contact bounce, max | 1 ms |
| Nominal operating current, (10%) | 16.7 mA |
| Operate time (at nominal voltage)(at 20C) | Max. 15 ms (Approx. 8 ms) |
| Initial insulation resistance | 10,000 Mohm at 500 V DC |
| Functional Vibration resistance | 176.4 m/s^2 {18 G}, 10 to 55 Hz at double amplitude of 3 mm |
| Nominal operating power | 200 mW |
| 导通电压（最大值） | 8.4 VDC |
| 关闭电压（最小值） | 1.2 VDC |
| 系列 | S |
| 继电器类型 | General Purpose |
| 开关电压 | 250VAC, 48VDC - Max |
| 额定接触（电流） | 4A |
| 线圈电压 | 12VDC |
| 释放时间 | 10ms |
| 线圈类型 | Non Latching |
| 接触点外形 | 4PST (2 Form A, 2 Form B) |
| 线圈电流 | 16.7mA |
| 工作时间 | 15ms |
| 线圈功率 | 200mW |
| 安装类型 | PCB（印刷电路板）安装 |
| 端子类型 | 印刷电路板引脚 |
| 工作温度范围 | -55 → +65°C |
| 最大切换电压 交流 | 250V |
| 长度 | 28mm |
| 应用类型 | 办公设备、安全、电信 |
| 最大切换电压 直流 | 48V |
| 高度 | 10.5mm |
| 深度 | 12mm |
| 线圈电阻 | 720 Ω |
| 寿命 | 10 ^8（机械）次操作，10^5（电气 - 交流）次操作，2 x 10^5（电气 - 直流）操作 |
| Board Level Components | Y |
| 最小工作温度 | -55°C |
| 最大切换电流 直流 | 3 A |
| 尺寸 | 28 x 12 x 10.5mm |
| 最大切换电流 交流 | 4 A |
| 最大切换功率 交流 | 1 kVA |
| 最大工作温度 | +65°C |
| 线圈对触点绝缘 | 1.5kV rms |
| 触点配置 | 双刀双掷 |
| 最大切换功率 直流 | 90 W |
| RESOURCE TYPE | LINK |
|---|---|
