Panasonic

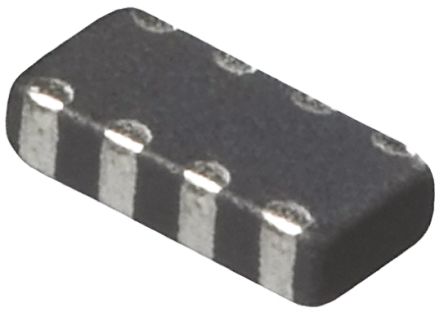

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 1mm |
| 外形尺寸 | 2 x 1 x 0.5mm |
| 身高 | 0.5mm |
| 长度 | 2mm |
| 最大额定电流 | 100mA |
| 最高工作温度 | +85°C |
| 最低工作温度 | -40°C |
| 安装类型 | Surface Mount |
| 工作频率 | 100MHz |
| 端接类型 | PC Pin |
| Ferrite Case Style | :0804 [2010 Metric] |
| Ferrite Mounting | :SMD |
| Impedance @ 100MHz | :220ohm |
| Impedance Tolerance | :± 25% |
| DC Current Rating | :100mA |
| DC Resistance Max | :0.7ohm |
| 系列 | :EXC28B |
| SVHC | :Diboron trioxide (19-Dec-2012) |
| 芯材 | :Ferrite |
| Impedance Frequency | :100MHz |
| Reel Quantity | :5000 |
| 电阻 | :0.7ohm |
| Tolerance + | :25% |
| Tolerance - | :25% |
| Weight (kg) | 0.0052 |
| Tariff No. | 85363010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
