PANASONIC

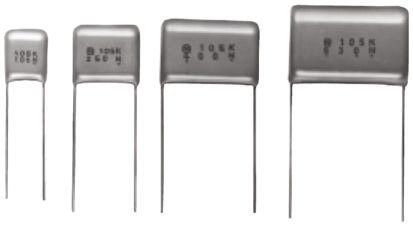

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 500 |
| 最小起订量 | 2000 |
| 电容 | 470nF |
| 深度 | 5.3mm |
| 介质 | PET |
| 外形尺寸 | 5.3 x 12.5 x 18.5mm |
| 身高 | 12.5mm |
| 引线直径 | 0.6mm |
| 引线间距 | 15mm |
| 长度 | 18.5mm |
| 最高工作温度 | +105°C |
| 最低工作温度 | -40°C |
| 安装类型 | Through Hole |
| 容差 | ±5% |
| 公差减 | -5% |
| 公差加 | +5% |
| 电压 | 250 V dc |
| RoHS指令 | Compliant |
| 产品范围 | :PANASONIC - ECQE(F) Series |
| 电容公差 | :± 5% |
| Capacitor Dielectric Type | :Polyester (PET) |
| 额定电压 | :250V |
| Life Time @ Temperature | :- |
| Capacitor Case Style | :- |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :15mm |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| 封装 | :Each |
| Capacitor Mounting | :Through Hole |
| 外部深度 | :5.3mm |
| External Length / Height | :12.5mm |
| 外宽 | :18.5mm |
| 引线长度 | :20mm |
| No. of Pins | :2 |
| 工作温度范围 | :-40°C to +105°C |
| Weight (kg) | 0.01 |
| Tariff No. | 85322500 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
