Panasonic Electric Works

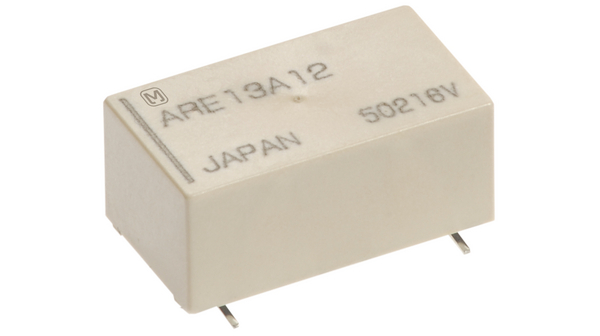

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | High Frequency / RF Relays |
| RoHS | RoHS Compliant |
| 触点形式 | 1 Form C (SPDT-BM) |
| 触点额定电流 | 500 mA |
| 线圈电压 | 6 VDC |
| 线圈类型 | Single Side Stable |
| 频率 | 2.6 GHz |
| 功耗 | 200 mW |
| 端接类型 | Solder Terminal |
| 隔离 | 30 dB at 2.6 GHz |
| 插入损耗 | 0.7 dB at 2.6 GHz |
| 线圈电流 | 33.3 mA |
| 线圈电阻 | 180 Ohms |
| 联系额定值 | 500 mA |
| 封装 | Bulk |
| 工厂包装数量 | 50 |
| 驻波比 | 1.7 at 2.6 GHz |
| 系列 | * |
| 标准包装 | 50 |
| RoHS指令 | Lead free / RoHS Compliant |
| 操作功能 | Single Side Stable |
| Vibration resistance - Destructive | 10 to 55 Hz at double amplitude of 5 mm |
| Conditions for operation, transport and storage (Not freezing and condensing at low temperature) - Humidity | 5 to 85% R.H. |
| 安装 | PC Board |
| Unit weight | Approx. 5 g .18 oz |
| Initial contact resistance (By voltage drop 10V DC 10mA) | Max. 100mohm |
| High frequency characteristics(Initial) - VSWR | Max. 1.3 (to 900MHz), Max. 1.7 (to 2.6GHz) |
| Temperature rise (at 20C) | Max. 60°C |
| Max allowable voltage, (at 60C) | 6.6 VDC |
| Vibration resistance - Functional | 10 to 55 Hz at double amplitude of 3 mm |
| Release time (without diode) (at 20C) | Max. 5ms |
| Operate time (at 20C) | Max. 10ms |
| Initial breakdown voltage - Between contact and coil | 1,000 Vrms |
| Contact material | Gold |
| Initial insulation resistance | Min. 100 Mohm (at 500 V DC) |
| Conditions for operation, transport and storage (Not freezing and condensing at low temperature) - Ambient temp | 40°C to 70°C 40°F to 158°F |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 500 Vrms |
| Packing | Carton packing |
| High frequency characteristics(Initial) - Isolation | Min. 60dB (to 900MHz), Min. 30dB (to 2.6GHz) |
| Pick-up voltage, (max) (initial) | 4.5 VDC |
| 阻抗 | 50 ohm |
| Coil resistance, (10%) | 180 ohm |
| SubCategory | High Frequency Relays |
| Nominal operating power | 200 mW |
| Max switching current | 0.5 A DC |
| Initial breakdown voltage - Between contact and ground terminal | 500 Vrms |
| 联系配置 | 1C SPDT |
| Contact carrying power | 10W (at 2.6GHz [Impedance 75 ohm, V.S.W.R. Max.1.5] [Impedance 50 ohm, V.S.W.R. Max.1.7]) |
| 电流 | 0.5 A |
| Contact rating | 1W (at 2.6 GHz [Impedance 75 ohm, V.S.W.R. Max.1.5] [Impedance 50 ohm, V.S.W.R. Max.1.7]) 10mA 24V DC (resistive load) |
| Shock resistance - Functional | Min. 500 m/s^2{50 G} |
| Max switching voltage | 30 V DC |
| Nominal operating current, (10%) | 33.3 mA |
| High frequency characteristics(Initial) - Insertion loss | Max. 0.2dB (to 900MHz), Max. 0.7dB (to 2.6GHz) |
| Expected life (min operations) - Mechanical (at 180 cpm) | 10^6 |
| Drop-out voltage, (min)(initial) | 0.6 VDC |
| Expected life (min operations) - Electrical | 1W, 2.6GHz, [Impedance 75ohm, V.S.W.R. ? 1.5] [Impedance 50 ohm, V.S.W.R. ? 1.7]: 310^5, 10mA 24V DC (resistive load) (at 20cpm): 310^5 |
| Shock resistance - Destructive | Min. 1,000 m/s^2 {100 G} |
| Dimensions L x W x H | 20.2 x 11.2 x 8.9 mm |
| Ucoil | 6 |
| Rcoil | 180 |
| 插入损耗 | 0.7 dB@ 2.6 GHz |
| 联系方式 | 1 change-over (CO) |
| Pcoil | 200 |
| Switching current | 1 A |
| Relay type | Monostable |
| 测试电压 | 0.5 |
| Switching voltage | 30 |
| 连接方式 | THD |
| Temperature range | -40...+70 °C |
| Crosstalk attenuation | 30 dB@ 2.6 GHz |
| Voltage standing wave ratio (VSWR) | 1.7@ 2.6 GHz |
