Panasonic Electric Works

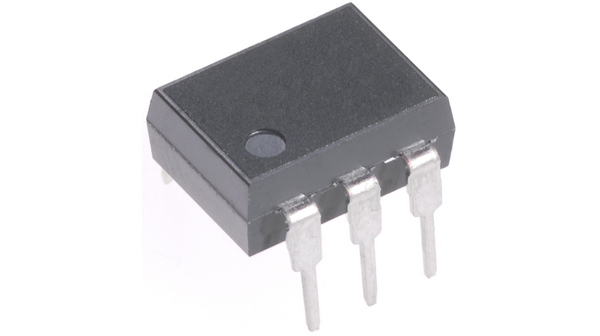

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant By Exemption |
| 控制电压范围 | 1.5 V to 5 V |
| 额定负载电压 | 60 V |
| 额定负载电流 | 550 mA |
| 触点形式 | 1 Form A (SPST-NO) |
| 输出设备 | MOSFET |
| 封装/外壳 | DIP-6 |
| 安装风格 | Through Hole |
| 输入到输出绝缘方法 | Photocoupler |
| 开启电阻（最大值） | 0.83 Ohms |
| 封装 | Bulk |
| 产品类型 | PCB Mount |
| 工厂包装数量 | 50 |
| 端接类型 | Solder Pin |
| 供应商封装形式 | DIP |
| 标准包装名称 | DIP |
| 欧盟RoHS指令 | Compliant |
| I/O Isolation Voltage | 1500 |
| 输入类型 | DC |
| Package Height | 3.9 |
| 安装 | Through Hole |
| 最大输入电流 | 50 |
| 输出类型 | AC|DC |
| 最大输入电压 | 1.5 |
| 最大输出电流 | 0.55 |
| Package Width | 6.4 |
| Maximum Output Voltage | 60 |
| PCB | 6 |
| 最高工作温度 | 85 |
| 最低工作温度 | -40 |
| Package Length | 8.8 |
| 引脚数 | 6 |
| 铅形状 | Through Hole |
| 继电器类型 | Relay |
| 安装类型 | Through Hole |
| 负载电流 | 550mA |
| 电压 - 负载 | 0 ~ 60 V |
| 供应商设备封装 | 6-DIP |
| 导通状态电阻 | 2.5 Ohm |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 50 |
| 电压 - 电压 | 1.14VDC |
| 封装/外壳 | 6-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 导通电阻 - 最大 | 0.83 Ohms |
| 输入电流 | 50 mA |
| 工作温度范围 | -40C to 85C |
| 包装类型 | DIP |
| 工作温度分类 | Industrial |
| 输入电压（最大值） | 1.5 V |
| 输出电压（最大值） | 60 V |
| 线路安排 | 1 Form A |
| 输入电流（最大） | 50 mA |
| 隔离电压 | 1500 V |
| 输出电流 | 550 mA |
| 弧度硬化 | No |
| 输入电压 | 1.5 V |
| Load Voltage Max | :60V |
| On State Resistance Max | :2.5ohm |
| 联系配置 | :SPST-NO |
| Forward Current If | :1mA |
| Relay Terminals | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Load Current RMS Max | :550mA |
| Load Voltage Range | :60V |
| RMS Load Voltage Max | :60V |
| 终端类型 | :Through Hole |
| Weight (kg) | 0.00045 |
| Tariff No. | 85364110 |
| 案例 | DIP6 |
| Operating current max | 350mA |
| Multiplicity | 1 |
| Relay type | solid state |
| Gross weight | 1.66 g |
| Operate time | 0.65ms |
| On-state resistance | 0.83Ω |
| Control current max | 3mA |
| Relay variant | 1-phase, PhotoMOS |
| Relay series | AQV21 |
| Collective package [pcs] | 58 |
| Switched voltage | max 60V DC, max 60V AC |
| spg | 58 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
