panasonic electric works

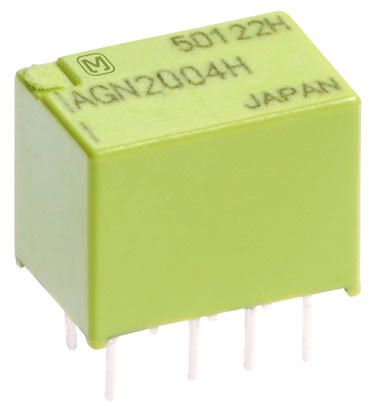

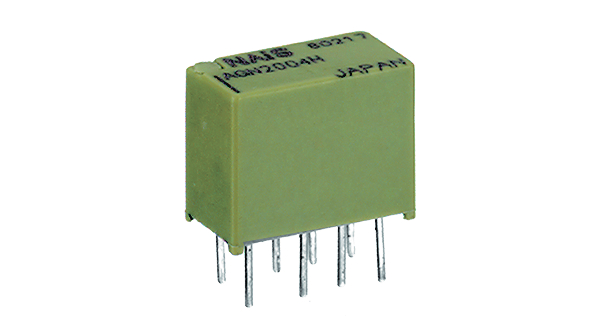

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | General Purpose Relay |
| 触点形式 | DPDT |
| 最大额定电流 | 1 A |
| 直流线圈电压 | 4.5 V |
| 安装 | Through Hole |
| 线圈电流 | 31 mA |
| 线圈电阻 | 145 Ohm |
| 触点材料 | Silver Palladium |
| 最大交流电压额定值 | 125 V |
| 最大直流额定电压 | 110 V |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Rail / Tube |
| 产品种类 | Low Signal Relays - PCB |
| RoHS | RoHS Compliant By Exemption |
| 触点形式 | 2 Form C (DPDT-BM) |
| 触点额定电流 | 1 A |
| 线圈电压 | 4.5 VDC |
| 最大开关电流 | 1 A |
| 线圈类型 | Single Side Stable |
| 功耗 | 140 mW |
| 端接类型 | Solder Terminal |
| 联系额定值 | 1 A at 30 VDC / 300 mA at 125 VAC |
| 封装 | Tube |
| 工厂包装数量 | 50 |
| 继电器结构 | Non-Latching |
| 线圈抑制二极管 | No |
| 最大额定电流 | 1 |
| 最大直流额定电压 | 110 |
| 最小压差电压 | 0.45VDC |
| 线圈电流 | 31 |
| 推到测试按钮 | No |
| 包装类型 | DIP |
| 最低工作温度 | -40 |
| 产品长度 | 10.6 |
| 最高工作温度 | 85 |
| 最大额定功率 | 30W|37.5VA |
| 欧盟RoHS指令 | Compliant |
| 线圈电阻 | 145 |
| Operate Time | 4 |
| 直流线圈电压 | 4.5 |
| 产品厚度 | 5.7 |
| 端子数 | 8 |
| 最大交流电压额定值 | 125 |
| 产品高度 | 9 |
| 密封 | Sealed |
| 最大吸合电压 | 3.38VDC |
| LED指示灯 | No |
| 开启电压（最大值） | 3.38 VDC |
| 关闭电压（最小值） | 0.45 VDC |
| 线圈功率 | 140 mW |
| 继电器类型 | Telecom |
| 切换电压 | 125VAC, 110VDC - Max |
| 释放时间 | 4ms |
| 操作时间 | 4ms |
| 触点额定值（电流） | 1A |
| 安装类型 | Through Hole |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | General Purpose |
| 联系配置 | DPDT |
| 深度 | 5.7mm |
| 身高 | 9mm |
| 隔离线圈对触点 | 1500V rms |
| 长度 | 10.6mm |
| 最高工作温度 | +85°C |
| 最大开关电源AC | 37.5 VA |
| 最大开关电源DC | 30 W |
| 最低工作温度 | -40°C |
| 终端类型 | Through Hole |
| Relay type | electromagnetic |
| Multiplicity | 1 |
| Contacts configuration | DPDT |
| Gross weight | 1.83 g |
| Rated coil voltage | 4.5V DC |
| Relay variant | miniature |
| Contact current max | 1A |
| Collective package [pcs] | 600 |
| Relay series | AGN |
| spg | 600 |
| 操作功能 | Single Side Stable |
| Min switching capacity | 10 ?A 10 mV DC |
| Conditions for operation, transport and storage (Not freezing and condensing at low temperature) - Humidity | 5 to 85% R.H. |
| Unit weight | Approx. 1 g .035 oz |
| Vibration resistance - Destructive | 10 to 55 Hz at double amplitude of 5 mm |
| 电流 | 1 Amp |
| Temperature rise (at 20C) | Max. 50°C |
| Release time (without diode) [Reset time] (at 20C) | Max. 4 ms (Approx. 1 ms), [Max. 4 ms (Approx. 2 ms)] |
| Vibration resistance - Functional | 10 to 55 Hz at double amplitude of 3.3 mm |
| Initial breakdown voltage - Between contact sets | 1,000 Vrms for 1min. |
| Initial contact resistance, max (By voltage drop 6 V DC 1A ) | 100 mohm |
| Initial breakdown voltage - Between contact and coil | 1,500 Vrms for 1min. |
| Coil resistance, (10%) | 145 ohm |
| Initial insulation resistance | Min. 10,000M ohm (at 500V DC) |
| Conditions for operation, transport and storage (Not freezing and condensing at low temperature) - Ambient temp | 40°C to 85°C, 40°F to 185°F |
| Drop-out voltage, (min) (initial) | 0.45 VDC |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 750 Vrms for 1min. |
| Max switching power (resistive load) | 30 W, 37.5 V A |
| Pick-up voltage, (max) (initial) | 3.38 VDC |
| Expected life (minoperations) - Mechanical (at 750 cpm) | 5 10^7 |
| Nominal switching capacity (resistive load) | 1 A 30 V DC, 0.3 A 125 V AC |
| Contact material | Stationary: AgPd+Au clad, Movable: AgPd |
| Initial surge voltage - Between open contacts (10160 ?s) | 1,500 V (FCC Part 68) |
| SubCategory | Signal Relay |
| Nominal operating power | 140mW (1.5 to 12 V DC), 230mW (24 V DC) |
| Operate time [Set time] (at 20C) | Max. 4 ms (Approx. 2 ms), [Max. 4 ms (Approx. 2 ms)] |
| Max switching current | 1 A |
| Max allowable voltage | 6.75 VDC |
| Initial surge voltage - Between contacts and coil (210 ?s) | 2,500 V (Telcordia) |
| Expected life (minoperations) - Electrical (at 20 cpm) | 1 A 30 V DC resistive - 10^5, 0.3 A 125 V AC resistive - 10^5 |
| Max switching voltage | 110 V DC, 125 V AC |
| Nominal operating current, (10%) | 31 mA |
| Shock resistance - Functional | Min. 750 m/s^2{75G] |
| Shock resistance - Destructive | Min. 1,000 m/s^2{100G] |
| 导通电压（最大值） | 3.38 VDC |
| 关闭电压（最小值） | 0.45 VDC |
| 系列 | AGN |
| 继电器类型 | Telecom |
| 开关电压 | 125VAC, 110VDC - Max |
| 额定接触（电流） | 1A |
| 线圈电压 | 4.5VDC |
| 释放时间 | 4ms |
| 线圈类型 | Non Latching |
| 接触点外形 | DPDT (2 Form C) |
| 线圈电流 | 31mA |
| 工作时间 | 4ms |
| Dimensions L x W x H | 10.6 x 5.7 x 9 mm |
| Switching power | 30 |
| Rcoil | 145 |
| Switching voltage | 125 |
| 联系方式 | 2 change-over (CO) |
| Pcoil | 140 |
| Switching current | 1 A @ 30 VDC |
| 测试电压 | 1.5 |
| 连接方式 | THD |
| 间距 | 3.2 |
| Temperature range | -40...+85 °C |
| Ucoil | 4.5 |
| Protection rating | IP 67 |
| 线圈电阻 | 145 Ω |
| 寿命 | 50000000（电气）次循环 |
| 线圈功率 | 140mW |
| Board Level Components | Y |
| 最大切换功率 交流 | 37.5 VA |
| 最大工作温度 | +85°C |
| 线圈对触点绝缘 | 1.5kV rms |
| 端子类型 | 通孔 |
| 高度 | 9mm |
| 触点配置 | 双刀双掷 |
| 安装类型 | PCB（印刷电路板）安装 |
| 工作温度范围 | -40 → +85°C |
| 尺寸 | 10.6 x 5.7 x 9mm |
| 触点材料 | 银合金 |
| 最大切换功率 直流 | 30 W |
| 深度 | 5.7mm |
| 长度 | 10.6mm |
| 应用类型 | 通用 |
| 最小工作温度 | -40°C |
