on semiconductor

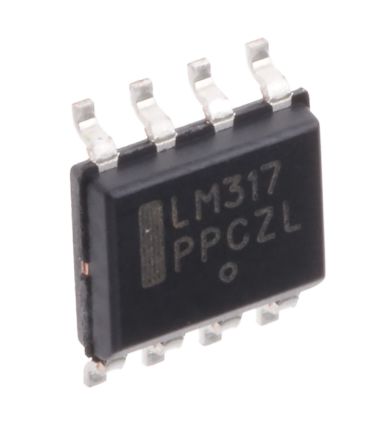

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8SOIC N |
| 极性 | Positive |
| 类型 | Linear |
| 输出数 | 1 |
| 最大输出电流 | 0.1(Min) A |
| 输出电压 | 1.2 to 37 V |
| 准确性 | ±4 % |
| 线路调整 | 0.04 %/V |
| 负载调整率 | 0.5 % |
| 参考电压 | 1.3 V |
| 工作温度 | 0 to 125 °C |
| 安装 | Surface Mount |
| 输出类型 | Adjustable |
| 标准包装 | Rail / Tube |
| Package Width | 4(Max) |
| PCB | 8 |
| 欧盟RoHS指令 | Compliant |
| 最低工作温度 | 0 |
| 供应商封装形式 | SOIC N |
| 标准包装名称 | SOIC |
| 最高工作温度 | 125 |
| Package Length | 5(Max) |
| 特殊功能 | Current Limit|Safe Area Protectio... |
| 引脚数 | 8 |
| Package Height | 1.5(Max) |
| 输出电压 | 1.2 to 37 |
| 封装 | Rail |
| 最大输出电流 | 0.1(Min) |
| 准确性 | ±4 |
| 铅形状 | Gull-wing |
| 稳压器拓扑结构 | Positive Adjustable |
| 安装类型 | Surface Mount |
| 稳压器数量 | 1 |
| 供应商设备封装 | 8-SOIC N |
| 电压 - 输出 | 1.2 V ~ 37 V |
| 电流 - 输出 | 100mA |
| 封装/外壳 | 8-SOIC (0.154", 3.90mm Width) |
| 电压 - 电压 | Up to 40V |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 5 x 4 x 1.5mm |
| 身高 | 1.5mm |
| 长度 | 5mm |
| 最高工作温度 | +125 °C |
| 最低工作温度 | 0 °C |
| 包装类型 | SOIC N |
| 宽度 | 4mm |
| 产品种类 | Voltage Regulators - Standard |
| 输出电流 | 0.1 A |
| 工厂包装数量 | 98 |
| PSRR /脉动抑制 - 典型值比 | 80 dB |
| 安装风格 | SMD/SMT |
| 最大输入电压 | 40 V |
| RoHS | RoHS Compliant |
| 输入电压最小 | 4.2 V |
| 工作温度范围 | 0C to 125C |
| 稳压器输出类型 | Adjustable |
| 电压稳压器类型 | Linear |
| 极性类型 | Positive |
| Output Voltage Accuracy | �4 % |
| 工作温度分类 | Commercial |
| 拓扑结构 | Standard |
| 弧度硬化 | No |
| Input Voltage Min | :5V |
| Input Voltage Max | :35V |
| Output Voltage Min | :1.2V |
| Output Voltage Max | :37V |
| Voltage Regulator Case Style | :SOIC |
| No. of Pins | :8 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Accuracy % | :4% |
| Base Number | :317 |
| IC Generic Number | :317 |
| No. of Outputs | :1 |
| 工作温度范围 | :-40°C to +85°C |
| Operating Voltage Tolerance + | :4% |
| Output Current Max | :1A |
| Output Voltage Adjustable Range | :1.2V to 37V |
| Primary Input Voltage | :40V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0001 |
| Tariff No. | 85423990 |
| Current,Output | 100mA |
| PackageType | SOIC-8 |
| Regulation,Line | 0.01%/V |
| Regulation,Load | 5mV |
| RegulatorType | PositiveVoltageOut |
| Resistance,Thermal,JunctiontoCase | 45°C/W |
| Temperature,Operating,Range | 0to+125°C |
| Voltage,Noise | 0.003% |
| Voltage,Output | 1.2to37V |
| Voltage,Supply | 40V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
