on semiconductor

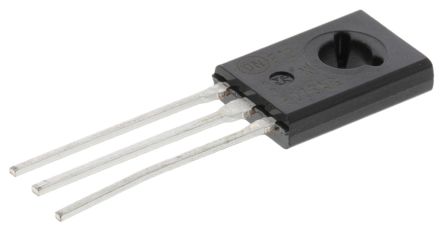

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 3TO-225 |
| 类型 | TRIAC |
| 重复峰值反向电压 | 400 V |
| 最大保持电流 | 15 mA |
| 浪涌额定电流 | 30 A |
| 峰值通态电压 | 2@6A V |
| 重复峰值断态电流 | 0.01 mA |
| 最大门极触发电压 | 2.5 V |
| 最大门极触发电流 | 10 mA |
| 工作温度 | -40 to 110 °C |
| 安装 | Through Hole |
| 标准包装 | Boxed |
| 标准包装 | Bulk |
| 供应商封装形式 | TO-225 |
| 封装 | Box |
| 重复峰值反向电压 | 400 |
| 最高工作温度 | 110 |
| 最大门极触发电流 | 10 |
| 最大保持电流 | 15 |
| 重复峰值断态电流 | 0.01 |
| 浪涌额定电流 | 30 |
| 最大门极触发电压 | 2.5 |
| Repetitive Peak Forward Blocking Voltage | 400 |
| 欧盟RoHS指令 | Compliant |
| 峰值通态电压 | 2@6A |
| 最低工作温度 | -40 |
| Operating Junction Temperature | -40 to 110 |
| 引脚数 | 3 |
| 铅形状 | Through Hole |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 7.74 x 2.66 x 11.04mm |
| 身高 | 11.04mm |
| 长度 | 7.74mm |
| 最高工作温度 | +110 °C |
| 最低工作温度 | -40 °C |
| 安装类型 | Through Hole |
| 包装类型 | TO-225 |
| 额定通态平均电流 | 4A |
| 重复峰值正向阻断电压 | 400V |
| 宽度 | 2.66mm |
| 工厂包装数量 | 500 |
| 产品种类 | Triacs |
| 额定重复关闭状态电压VDRM | 400 V |
| 门极触发电流 | 10 mA |
| 关闭状态漏泄电流@ VDRM IDRM | 10 uA |
| 保持电流（ Ih最大值） | 15 mA |
| 安装风格 | Through Hole |
| 不重复通态电流 | 30 A |
| 封装/外壳 | TO-225-3 |
| 通态电压 | 2 V |
| RoHS | RoHS Compliant |
| 最大转折电流IBO | 30 A |
| 门极触发电流（最大） | 10 mA |
| 门极触发电压（最大值） | 2.5 V |
| 工作温度范围 | -40C to 110C |
| 浪涌峰值通态电流（最大） | 30 A |
| 重复峰值断电流 | 0.01 |
| 重复峰值断态电压 | 400 V |
| 断态电压 | 400 V |
| 工作温度分类 | Industrial |
| 导通状态电压（最大值） | 2@6A V |
| 保持电流 | 15 mA |
| 弧度硬化 | No |
| 门极触发电压 | 2.5 V |
| Peak Repetitive Off-State Voltage, Vdrm | :400V |
| Gate Trigger Current Max (QI), Igt | :5mA |
| On State RMS Current IT(rms) | :4A |
| Peak Non Rep Surge Current Itsm 50Hz | :30A |
| Holding Current Max Ih | :15mA |
| Gate Trigger Voltage Max Vgt | :2.5V |
| Peak Gate Power | :10W |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :110°C |
| Thyristor Case | :TO-225 |
| No. of Pins | :3 |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Current Itsm | :30A |
| Current Itsm @ 60Hz | :30A |
| Current t2+g- | :5mA |
| Current t2-g+ | :10mA |
| Current t2-g- | :5mA |
| Gate Trigger Current Igt (Q1) t2+g+ | :5mA |
| Gate Trigger Current Max, Igt | :5mA |
| 工作温度范围 | :-40°C to +110°C |
| Repetitive Reverse Voltage Vrrm Max | :400V |
| 端接类型 | :Through Hole |
| 晶闸管类型 | :Triac |
| Weight (kg) | 0.00064 |
| Tariff No. | 85413000 |
