microchip

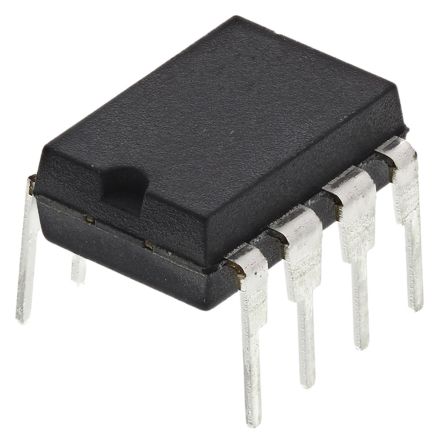

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8PDIP |
| 类型 | Chopper Stabilization |
| 每个芯片的通道数 | 1 |
| 典型增益带宽积 | 2 MHz |
| 最大电压增益 | 130(Typ) dB |
| 电源类型 | Dual |
| 最小双电源电压 | ±2.25 V |
| 最大双电源电压 | ±8 V |
| 安装 | Through Hole |
| 工作温度 | 0 to 70 °C |
| 标准包装 | Rail / Tube |
| 匹配代码 | TC7650CPA |
| 零点漂移 | 0.05µV/°C |
| 单位包 | 60 |
| 标准的提前期 | 14 weeks |
| GBW | 1MHz |
| R2R | no |
| 噪音 | 28nV/rtHz |
| VCC （分钟） | 4.5V |
| 输入失调 | 0.0007mV |
| 汽车 | NO |
| VCC （最大） | 16V |
| 无铅Defin | RoHS-conform |
| 输出电流 | 0.07mA |
| 顶（最大） | 70°C |
| 压摆率 | 2.5V/µs |
| 最小起订量 | 240 |
| 通道 | 1 |
| 输入偏压 | 1pA |
| 顶（分钟） | 0°C |
| ICC /通道 | 2000µA |
| 关机 | no |
| 技术 | Chopper |
| 放大器类型 | Chopper (Zero-Drift) |
| 安装类型 | Through Hole |
| 供应商设备封装 | 8-PDIP |
| 封装 | Tube |
| 电流 - 电源 | 2mA |
| Voltage - Supply, Single/Dual (±) | 4.5 V ~ 16 V, ±2.25 V ~ 8 V |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
| 压摆率 | 2.5 V/µs |
| 电流 - 输入偏压 | 1.5pA |
| 电压 - 输入偏移 | 0.7µV |
| 电路数 | 1 |
| 增益带宽积 | 2MHz |
| RoHS指令 | Lead free / RoHS Compliant |
| 输出类型 | Rail to Rail |
| 工作电源电压 | 4.5 V to 16 V, +/- 2.25 V to +/- 8 V |
| 工厂包装数量 | 60 |
| 产品种类 | Operational Amplifiers - Op Amps |
| 最低工作温度 | 0 C |
| 共模抑制比 - 闵 | 120 dB |
| 安装风格 | Through Hole |
| 输入失调电压 | 5 uV |
| 通道数 | 1 Channel |
| 最高工作温度 | + 70 C |
| 电源电流 | 3.5 mA |
| RoHS | RoHS Compliant |
| 输入偏置电流 - 最大 | 10 pA |
| Op Amp Type | :Chopper Stabilized |
| No. of Amplifiers | :2 |
| Supply Voltage Range | :4.5V to 16V |
| Amplifier Case Style | :DIP |
| No. of Pins | :8 |
| 带宽 | :2MHz |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :7650 |
| 工作温度范围 | :0°C to +70°C |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423990 |
| 案例 | DIP8 |
| Multiplicity | 1 |
| Offset voltage | 5µV |
| Integrated circuit type | operational amplifier |
| Transmission band frequency | 2MHz |
| Gross weight | 1.57 g |
| Voltage rise speed | 2.5V/μs |
| Number of channels | 1 |
| 电源电压 | 6.5...16V DC |
| Standby current | 3.5mA |
| 增益 | 130dB |
| Collective package [pcs] | 60 |
| spg | 60 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
