microchip

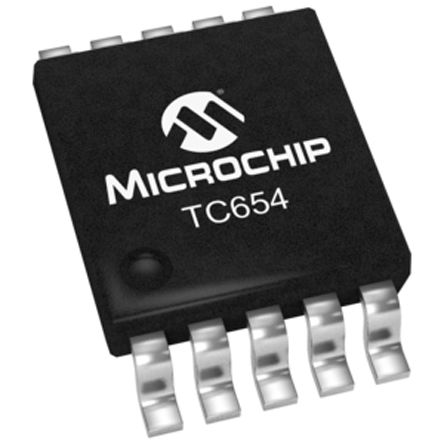

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 10MSOP |
| 类型 | High Speed PWM Controller |
| 输出数 | 1 |
| 输出电流 | 5(Min) mA |
| 工作温度 | -40 to 85 °C |
| 安装 | Surface Mount |
| 标准包装 | Rail / Tube |
| 单位包 | 100 |
| 最小起订量 | 2500 |
| 功能 | Controller - Commutation, Direction Management |
| 汽车类型 - AC，DC | Brushless DC (BLDC) |
| 安装类型 | Surface Mount |
| 应用范围 | Fan Controller |
| 供应商设备封装 | 10-MSOP |
| 封装 | Tube |
| 电压 - 电源 | 3 V ~ 5.5 V |
| 封装/外壳 | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| 接口 | Parallel |
| 输出配置 | Pre-Driver |
| RoHS指令 | Lead free / RoHS Compliant |
| 工作电源电压 | 3 V to 5.5 V |
| 产品种类 | Switching Controllers |
| 工厂包装数量 | 100 |
| 最高工作温度 | + 85 C |
| 安装风格 | SMD/SMT |
| 最低工作温度 | - 40 C |
| RoHS | RoHS Compliant |
| 包装类型 | MSOP |
| 引脚数 | 10 |
| 工作温度分类 | Industrial |
| 弧度硬化 | No |
| 工作电源电压（最大值） | 5.5 V |
| PWM输出数 | 1 |
| Motor Type | :PWM |
| No. of Outputs | :1 |
| 输出电压 | :4.4V |
| Driver Case Style | :MSOP |
| No. of Pins | :10 |
| Supply Voltage Min | :3V |
| Supply Voltage Max | :5.5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :654 |
| Digital IC Case Style | :MSOP |
| 频率 | :30Hz |
| 输入电流 | :150µA |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Range | :3V to 5.5V |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423990 |
| 案例 | MSOP10 |
| Integrated circuit type | driver |
| Gross weight | 0.02 g |
| 应用 | motors, fans |
| Operating temperature | -40...85°C |
| Number of channels | 1 |
| 电源电压 | 3...5.5V DC |
| Multiplicity | 1 |
| DC supplying current | 150µA |
| Collective package [pcs] | 100 |
| Kind of integrated circuit | PWM controller |
| spg | 100 |
