Microchip Technology

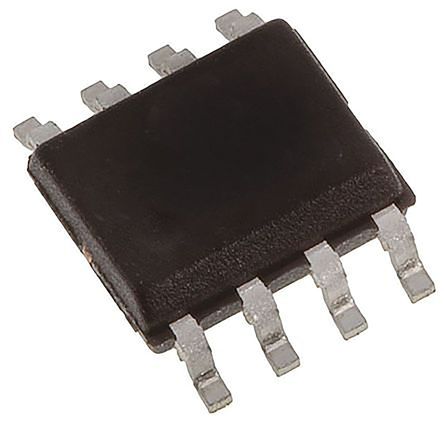

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 100 |
| 最小起订量 | 3300 |
| 电流 - 输出/通道 | 32mA |
| 放大器类型 | General Purpose |
| 安装类型 | Surface Mount |
| 标准包装 | 100 |
| 供应商设备封装 | 8-SOIC N |
| 输出类型 | Rail-to-Rail |
| 封装 | Tube |
| 工作温度 | -40°C ~ 125°C |
| 电流 - 电源 | 480µA |
| Voltage - Supply, Single/Dual (±) | 3.5 V ~ 12 V, ±1.75 V ~ 6 V |
| 封装/外壳 | 8-SOIC (0.154", 3.90mm Width) |
| 压摆率 | 2 V/µs |
| 电流 - 输入偏压 | 10pA |
| 电压 - 输入偏移 | 1mV |
| 电路数 | 1 |
| 增益带宽积 | 2.7MHz |
| RoHS指令 | Lead free / RoHS Compliant |
| 工作电源电压 | 3.5 V to 12 V |
| 安装风格 | SMD/SMT |
| 最小双电源电压 | 1.75 V |
| 最大双电源电压 | 6 V |
| 系列 | MCP6H72 |
| 共模抑制比 - 闵 | 80 dB |
| 输入失调电压 | 1 mV |
| 通道数 | 2 Channel |
| 技术 | CMOS |
| 最低工作温度 | - 40 C |
| 关机 | No Shutdown |
| 最高工作温度 | + 125 C |
| 电源电流 | 480 uA |
| RoHS | RoHS Compliant |
| 输入偏置电流 - 最大 | 25 nA |
| Op Amp Type | :Unity Gain Stable |
| No. of Amplifiers | :2 |
| Supply Voltage Range | :3.5V to 12V |
| Amplifier Case Style | :SOIC |
| No. of Pins | :8 |
| 带宽 | :2.7MHz |
| MSL | :MSL 1 - Unlimited |
| Weight (kg) | 0 |
| Tariff No. | 85423300 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| SVHC | :No SVHC (16-Dec-2013) |
| 案例 | SO8 |
| Integrated circuits features | rail-to-rail output |
| Offset voltage | 1mV |
| 安装 | SMD |
| Integrated circuit type | operational amplifier |
| Transmission band frequency | 2.7MHz |
| Gross weight | 0.08 g |
| Voltage rise speed | 2V/μs |
| Number of channels | 2 |
| 电源电压 | 3.5...12V DC |
| Standby current | 480µA |
| 增益 | 120dB |
| spg | 100 |
| Collective package [pcs] | 100 |
| Multiplicity | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
