microchip

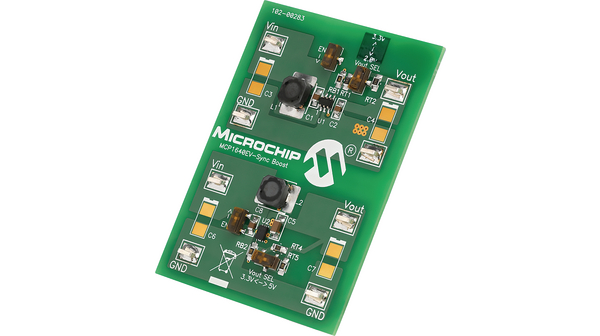

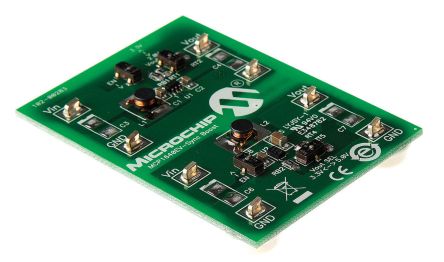

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Development Kit |
| 标准包装 | Boxed |
| 产品种类 | Power Management IC Development Tools |
| RoHS | RoHS Compliant |
| 产品 | Power Management Modules |
| 工具用于评估 | MCP1640 |
| 输入电压 | 0.35 V to 5.5 V |
| 输出电压 | 3.3 V to 5 V |
| 单位包 | 1 |
| 最小起订量 | 7 |
| 板类型 | Fully Populated |
| 输出及类型 | 1, Non-Isolated |
| 主要用途 | DC/DC, Step Up |
| 频率 - 开关 | 500kHz |
| 稳压器拓扑结构 | Boost |
| 电压 - 输出 | 2V, 3.3V or 5V |
| 电流 - 输出 | 100mA, 350mA |
| 用IC /零件 | MCP1640 |
| 电压 - 电压 | 0.35 V ~ 5.5 V |
| 其他名称 | MCP1640EVSBC |
| 供物品 | Board |
| RoHS指令 | Contains lead / RoHS non-compliant |
| 分类 | Development Kit |
| 套装包括 | Evaluation Board for MCP1640 |
| 技术 | Power Management |
| Silicon Manufacturer | :Microchip |
| Silicon Core Number | :(Not Applicable) |
| Kit Application Type | :Power Management |
| 套件包含 | :Board |
| 产品特点 | :Automatic PFM/PWM Operation, Enable State Selectable Using Mini-Dip Switch On Board |
| SVHC | :No SVHC (20-Jun-2013) |
| 核心架构 | :Power Management - Voltage Regulator |
| Core Sub-Architecture | :Step Up DC/DC Converter |
| Kit Features | :Automatic PFM/PWM Operation, Enable State Selectable using Mini-DIP Switch on Board |
| MCU Supported Families | :MCP1640 |
| Weight (kg) | 0.05 |
| Tariff No. | 85423190 |
| 内容 | OneMCP1640SynchronousBoostConverterEvaluationBoard |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
