Microchip Technology
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 板类型 | Fully Populated |
| 输出及类型 | 1, Non-Isolated |
| 主要用途 | DC/DC, Step Down |
| 稳压器拓扑结构 | Buck |
| 电压 - 输出 | 1.8V |
| 用IC /零件 | MCP19111 |
| 标准包装 | 1 |
| 电压 - 电压 | 5 V ~ 12 V |
| 供物品 | Board |

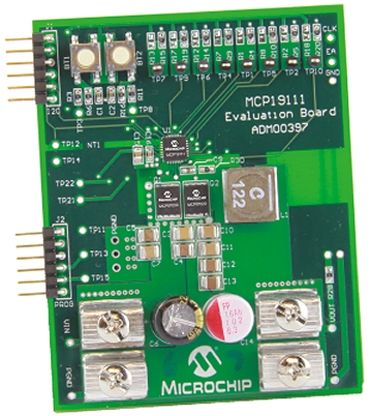

| 描述/功能 | For evaluation of the MCP19111 digitally enhanced PWM controller |
| 产品 | Evaluation Boards |
| 输出电流 | 30 A |
| 工具用于评估 | MCP19111 |
| 封装 | Bulk |
| 输入电压 | 12 V |
| 接口类型 | ICSP, I2C |
| 输出电压 | 3.6 V |
| 类型 | Current Mode PWM Controllers |
| RoHS | RoHS Compliant |
| Associated circuits package | QFN28 |
| In the set | prototype board |
| Multiplicity | 1 |
| Connector type | ICSP |
| Associated items | PICKIT-3 |
| Maximum output current | 30A |
| Gross weight | 0.11 kg |
| Associated circuits | MCP19111 |
| 接口 | I2C |
| Type of development kit | Microchip |
| Collective package [pcs] | 1 |
| spg | 1 |
| 套件分类 | 评估测试板 |
| 功能完备的设备 | MCP19111 |
| 汽车 | NO |
| Leadfree Defin | RoHS-conform |
| 包装 | Evalboard |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
