microchip

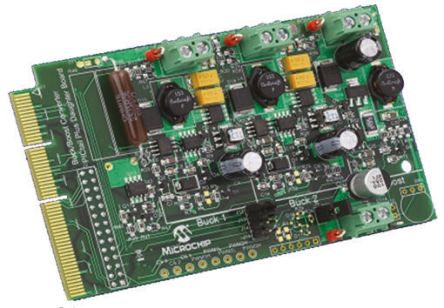

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Development Kit |
| 标准包装 | Boxed |
| 产品种类 | Power Management IC Development Tools |
| RoHS | RoHS Compliant |
| 产品 | Evaluation Boards |
| 工具用于评估 | dsPIC33F |
| 输入电压 | 7 V to 15 V |
| 输出电压 | 3.3 V, 5 V, 20 V |
| 适用于 | MA330020, MA330024, 28 pin starter development board |
| 输出电流 | 750 mA, 3 A |
| 工厂包装数量 | 1 |
| 板类型 | Fully Populated |
| 输出及类型 | 3, Non-Isolated |
| 主要用途 | DC/DC, Step Up or Down |
| 稳压器拓扑结构 | Buck-Boost |
| 用IC /零件 | PICtail™ Plus Board |
| 电压 - 电压 | 7 V ~ 15 V |
| 供物品 | Board |
| RoHS指令 | Lead free / RoHS Compliant |
| 分类 | Module |
| 套装包括 | CD with Documentation, PICtail Plus Daughter Board |
| Silicon Manufacturer | :Microchip |
| Silicon Core Number | :- |
| Kit Application Type | :Power Management - Voltage Regulator |
| Application Sub Type | :Buck/Boost Converter |
| 套件包含 | :- |
| 产品特点 | :Various Fault Indication and Protection, PMBus Communication Interface Connector |
| SVHC | :No SVHC (20-Jun-2013) |
| 核心架构 | :Power Management - Voltage Regulator |
| Core Sub-Architecture | :Buck-Boost Converter |
| Development Tool Type | :Daughter Board |
| Kit Features | :I/P Voltage at +9V to +15V, 2 Synchronous Buck Converter Power Stage, Boost Converter Power Stage |
| MCU Supported Families | :dsPIC33F GS |
| Silicon Family Name | :PICtail |
| Supported Devices | :dsPIC33FJ16GS504 |
| Weight (kg) | 0.3 |
| Tariff No. | 85423190 |
