microchip

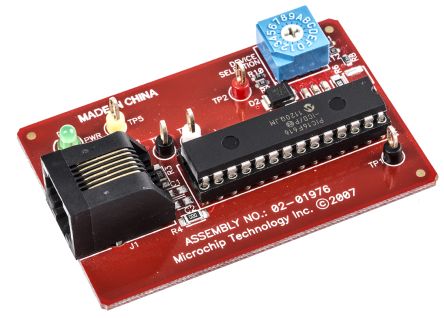

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Development Kit |
| 标准包装 | Bulk |
| 产品种类 | Sockets & Adapters |
| RoHS | RoHS Compliant |
| 产品 | MPLAB ICD 2 Headers |
| 适用于 | MPLAB ICD2, PIC16F616-ICD |
| 核心 | PIC |
| 数据总线宽度 | 8 bit |
| 描述/功能 | Used to debug the PIC16F615, PIC12F616 and PIC12F617 emulation family devices |
| 外形尺寸 | 2.45 in x 1.6 in x 0.725 in |
| 工厂包装数量 | 1 |
| 工具用于评估 | PIC12F609/HV609, PIC16F616/HV616, PIC16F610/HV610, PIC12F617, PIC12F615/HV615, PIC12F609/HV609 |
| 单位包 | 1 |
| 最小起订量 | 4 |
| 附件类型 | Transition Header |
| 配用/相关产品 | ICD2 |
| RoHS指令 | Lead free / RoHS Compliant |
| 分类 | Header |
| 核心型号 | PIC |
| 套装包括 | Header Interface for PIC16F615, PIC12F616 and PIC12F617 |
| 技术 | 8 bit |
| 产品特点 | :Header Board Provide In-circuit Debugging & Emulating Capabilities for Microchip Device |
| SVHC | :No SVHC (20-Jun-2013) |
| IC Adapter Type | :ICD2 Header Interface |
| MCU Supported Families | :PIC16F |
| Supported Devices | :PIC12F609/HV609 |
| Weight (kg) | 0.2 |
| Tariff No. | 85423190 |
| Gross weight | 0.15 kg |
| Associated circuits | PIC12F617 |
| Type of adapter for programmers | debug header |
| Associated items | MPLAB-ICD2, MPLAB-ICD3 |
| Multiplicity | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
