Microchip Technology

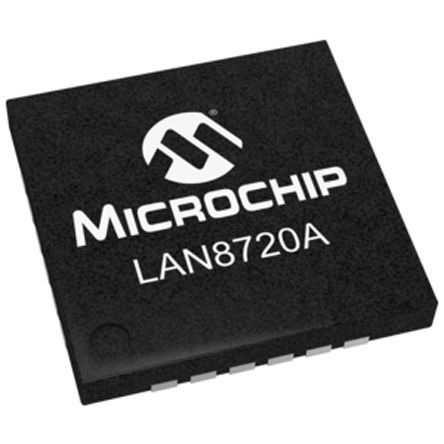

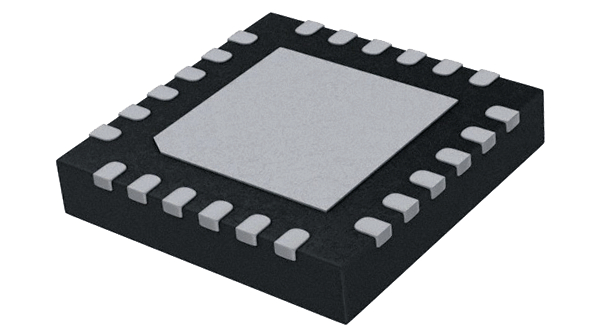

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 协议 | RMII |
| 安装类型 | Surface Mount |
| 标准包装 | 490 |
| 复式 | Full |
| 的驱动器/接收器数 | 4/4 |
| 供应商设备封装 | 24-QFN Exposed Pad (4x4) |
| 封装 | Tray |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 1.6 V ~ 3.6 V |
| 类型 | Transceiver |
| 封装/外壳 | 24-VFQFN Exposed Pad |
| 数据传输速率 | 10 Mbit/s, 100 Mbit/s |
| 外形尺寸 | 4.1 x 4.1 x 0.95mm |
| 身高 | 0.95mm |
| 长度 | 4.1mm |
| 最高工作温度 | +85 °C |
| 最低工作温度 | -40 °C |
| 收发器数量 | 1 |
| 包装类型 | QFN |
| 引脚数 | 24 |
| 支持标准 | IEEE 802.3u |
| 典型工作电源电压 | 3.3 V |
| 宽度 | 4.1mm |
| RoHS指令 | Compliant |
| Ethernet Type | :IEEE 802.3, IEEE 802.3u |
| Supply Voltage Min | :3V |
| Supply Voltage Max | :3.6V |
| Digital IC Case Style | :QFN |
| No. of Pins | :24 |
| IC Interface Type | :RMII |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Range | :3V to 3.6V, 1.14V to 1.26V |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
| 案例 | QFN24 |
| Transceivers amount | 1 |
| Integrated circuits features | PHY |
| Ethernet category | 10/100Base-T |
| Multiplicity | 1 |
| Integrated circuit type | transceiver |
| Gross weight | 4.16 g |
| Operating voltage | 3...3.6V |
| 安装 | SMD |
| 接口 | RMII |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
