Microchip Technology

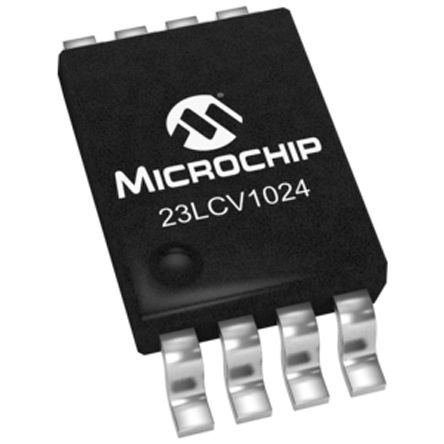

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Tube |
| 格式 - 存储器 | RAM |
| 供应商设备封装 | 8-TSSOP |
| 内存类型 | NVSRAM (Non-Volatile SRAM) |
| 工作温度 | -40°C ~ 85°C |
| 存储容量 | 1M (128K x 8) |
| 电压 - 电源 | 2.5 V ~ 5.5 V |
| 标准包装 | 100 |
| 接口 | SPI Serial |
| 速度 | 20MHz |
| 其他名称 | 23LCV1024IST |
| 封装/外壳 | 8-TSSOP (0.173", 4.40mm Width) |
| 组织 | 128 k x 8 |
| 最大工作电流 | 3 mA |
| 最高工作温度 | + 85 C |
| 安装风格 | SMD/SMT |
| 电源电压 - 最大 | 5.5 V |
| 最低工作温度 | - 40 C |
| 封装/外壳 | TSSOP-8 |
| 最大时钟频率 | 20 MHz |
| 电源电压 - 最小 | 2.5 V |
| 类型 | SPI Serial SRAM |
| RoHS | RoHS Compliant |
| Memory Configuration | :128K x 8bit |
| Supply Voltage Min | :2.5V |
| Supply Voltage Max | :5.5V |
| Memory Case Style | :TSSOP |
| No. of Pins | :8 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| 时钟频率 | :20MHz |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Range | :2.5V to 5.5V |
| Weight (kg) | 0.000175 |
| Tariff No. | 85423245 |
| 案例 | TSSOP8 |
| Integrated circuits features | with battery backup |
| Memory capacity | 1024kbit |
| 安装 | SMD |
| Memory organisation | 128kx8bit |
| Gross weight | 0.39 g |
| Kind of memory | SRAM |
| Operating voltage | 2.5...5.5V |
| Multiplicity | 1 |
| Integrated circuit type | memory |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
