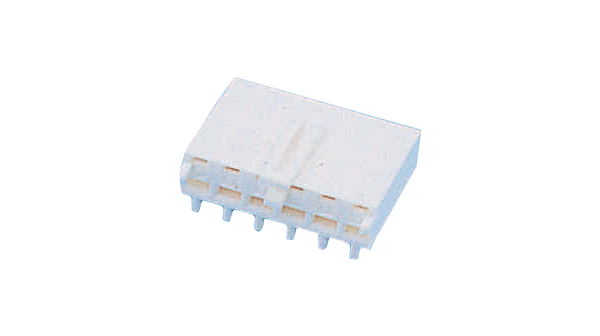

图片仅供参考,产品以实物为准
| 规格书 |
 90331-0001 |
| 文档 |
8993, 90331 Series 12/Jan/2010 90331-0001 Cert of Compliance 90331-0001.stp |
| 颜色 | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Provided |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch | 0.156" (3.96mm) |
| 封装 | Bulk |
| 安装类型 | Free Hanging (In-Line) |
| 颜色 | Natural |
| 间距 | 0.156" (3.96mm) |
| 连接器类型 | Receptacle |
| 位置数 | 6 |
| 注 | Contacts Not Provided |
| 行数 | 1 |
| 紧固型 | Latch Lock |
| 标准包装 | 1 |
| 触点类型 | Non Gendered |
| 接触端子 | Crimp |
| Description | Voltage supply connector 6-pole |
| 额定电流 | 4 A |
| 外壳材料 | Polyester |
| Poles | 1 x 6 |
| Temperature range | -40...+85 °C |
| Combustibility class | UL 94 V-0 |
| Contact material | Tin-plated brass |
| associated | 08-50-0276 |
| mating | 15-48-0420 15-48-0106 |
