molex

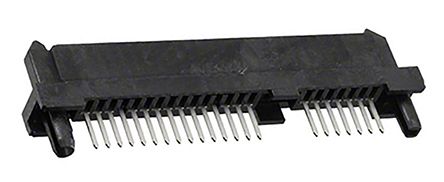

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | SATA |
| 性别 | RCP |
| 间距 | 1.27 mm |
| 触点数 | 15Power/7Signal |
| 端接方式 | Solder |
| 安装 | Surface Mount |
| 身体上的取向 | Straight |
| 标准包装 | Trays |
| 工厂包装数量 | 720 |
| 产品 | SATA Connectors |
| 产品种类 | I/O Connectors |
| 额定电流 | 1.5 A |
| 工作温度范围 | - 40 C to + 105 C |
| 额定电压 | 30 V |
| 端接类型 | SMD |
| 安装方式 | Vertical |
| 位置/触点数 | 22 |
| 可燃性等级 | UL 94 V-0 |
| 触点电镀 | Gold |
| 系列 | 87779 |
| 零件号别名 | 0877791001 |
| RoHS | RoHS Compliant |
| 节距 | :1.27mm |
| No. of Rows | :1 |
| No. of Contacts | :22 |
| 接触端子 | :Through Hole Vertical |
| 触点材料 | :Copper |
| Approval Bodies | :CSA, UL |
| 颜色 | :Black |
| 接触电阻 | :30mohm |
| De-mating Force | :5N |
| 绝缘电阻 | :1000Mohm |
| 材质 | :High Temp. Thermoplastic |
| 交配力 | :45N |
| No. of Mating Cycles | :500 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-35°C |
| 耐压 | :500V |
| 工作电压 | :30V |
| Weight (kg) | 0.004 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
