Molex

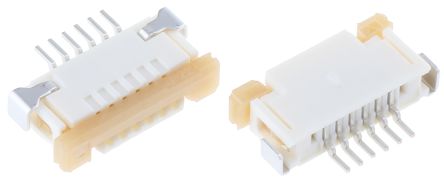

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 联系我们当前位置 | Top Contact |
| 安装方式 | Right |
| 额定电流 | 1 A |
| 触点电镀 | Silver, Tin-Bismuth |
| 外壳材料 | Nylon |
| 额定电压 | 125 V |
| 系列 | 52207 |
| 端接类型 | SMD |
| 封装 | Reel |
| 位置/触点数 | 6 |
| 驱动类型 | ZIF |
| 间距 | 1 mm |
| 温度范围 | - 30 C to + 85 C |
| 产品类型 | Connectors |
| RoHS | RoHS Compliant |
| 触点材料 | Phosphor Bronze |
| 性别 | :Socket |
| 节距 | :1mm |
| No. of Contacts | :6 |
| No. of Rows | :1 |
| FFC/FPC Thickness | :0.3mm |
| 接触端子 | :Surface Mount Right Angle |
| 联系我们当前位置 | :Top |
| Approval Bodies | :CSA, UL |
| 接触电阻 | :20mohm |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :100Mohm |
| 引线间距 | :1mm |
| No. of Mating Cycles | :30 |
| Operating Temperature Max | :+85°C |
| Operating Temperature Min | :-30°C |
| 耐压 | :500V |
| Weight (kg) | 0.0003 |
| Tariff No. | 85366930 |
| Electrical mounting | SMT |
| Maximum current | 1A |
| Multiplicity | 1 |
| Ribbon cable pitch | 1mm |
| Connector type | FFC / FPC |
| Spatial orientation | horizontal |
| Gross weight | 0.3 g |
| Operating temperature | -40...85°C |
| 针数 | 6 |
| 接触镀层 | tinned |
| Voltage max | 125V |
| spg | 1000 |
| Collective package [pcs] | 1000 |
| Contact material | phosphor bronze |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
