Molex

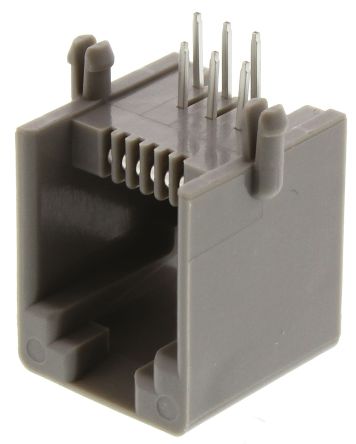

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Modular Socket |
| 触点材料 | Phosphor Bronze |
| 触点电镀 | Gold over Nickel |
| 深度 | 13mm |
| 性别 | Female |
| 长度 | 14.5mm |
| 安装类型 | Through Hole |
| 方法数目 | 6P6C |
| 定位 | Right Angle |
| 屏蔽类型 | UTP |
| 宽度 | 12.2mm |
| 系列 | :- |
| No. of Contacts | :6 |
| No. of Positions | :6 |
| No. of Ports | :1 |
| 局域网类型 | :- |
| 接触端子 | :Through Hole Right Angle |
| Approval Bodies | :UL |
| 颜色 | :Grey |
| 接触电阻 | :20mohm |
| 额定电流 | :1.2A |
| 外部深度 | :13mm |
| External Length / Height | :14.5mm |
| 外宽 | :12.2mm |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :1Gohm |
| 材质 | :Grey Glass filled Polyester |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-40°C |
| 端接方式 | :Through Hole |
| Weight (kg) | 0.001 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
