molex

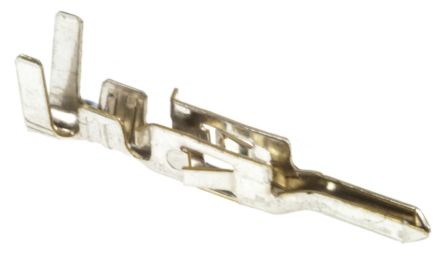

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector Headers and PCB Receptacles |
| 触点类型 | Signal |
| 触点材料 | Brass |
| 触点电镀 | Tin Over Copper |
| 性别 | PIN |
| 端接方式 | Crimp |
| 标准包装 | Bulk |
| RoHS指令 | Compliant |
| 工厂包装数量 | 1000 |
| 额定电流 | 9 A |
| 端接类型 | Crimp |
| 零件号别名 | 0039000041 39-00-0041-Z 5558TL |
| 产品种类 | Headers & Wire Housings |
| 产品类型 | Contacts |
| 商品名 | Mini-Fit Jr. |
| 额定电压 | 600 V |
| 线规 | 24-18 |
| 联系人性别 | Pin (Male) |
| RoHS | RoHS Compliant |
| 系列 | 5558 |
| 适用于 | :5559 Mini-Fit Jr. Plug Housing, 30068 Mini-Fit TPA Plug Housing, 42475 Mini-Fit BMI Plug Housing |
| 接触端子 | :Crimp |
| Wire Size AWG Min | :24AWG |
| Wire Size AWG Max | :18AWG |
| Cable Diameter Max | :3.1mm |
| Cable Diameter Min | :1.3mm |
| 颜色 | :Tin |
| 触点尺寸 | :18 |
| Voltage Rating V AC | :600V |
| Wire Area Size Max | :0.82mm² |
| Wire Area Size Min | :0.24mm² |
| 线径规格 | :18AWG |
| Wire Size (AWG) | :24AWG to 18AWG |
| Weight (kg) | 0.014 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
