Molex Connector Corporation

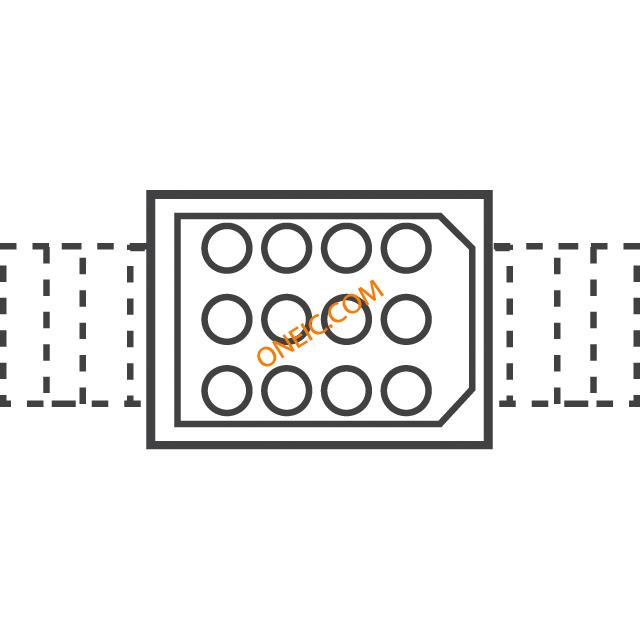

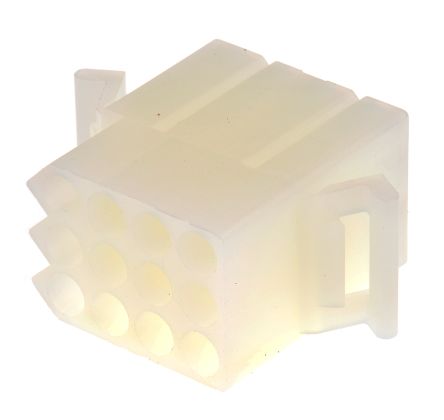

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 安装类型 | Panel Mount, Snap-In |
| 颜色 | Natural |
| 间距 | 0.198" (5.03mm) |
| 连接器类型 | Receptacle |
| 位置数 | 12 |
| 注 | Contacts Not Provided |
| 行数 | 3 |
| 标准包装 | 1 |
| 触点类型 | Male or Female |
| 行间距 | 0.198" (5.03mm) |
| 接触端子 | Crimp |
| 工厂包装数量 | 1000 |
| 产品种类 | Pin & Socket Connectors |
| 额定电流 | 9.5 A |
| 商品名 | Standard .093 in |
| 系列 | 1360 |
| 端接类型 | Crimp |
| 联系人性别 | Pin (Male), Socket (Female) |
| 外壳材料 | Nylon |
| 位置/触点数 | 12 |
| 安装风格 | Wire |
| 零件号别名 | 0003091121 1360-R 3091121 |
| 产品类型 | Receptacle Housings |
| RoHS | RoHS Compliant |
| No. of Positions | :12 |
| 节距 | :5.03mm |
| 适用于 | :1189, 1190, 1434, 1973 Crimp Terminals |
| Approval Bodies | :CSA, UL |
| Approval Category | :UL 94V-2 |
| Cable Diameter Max | :4.06mm |
| 颜色 | :Clear |
| De-mating Force | :0.027N |
| 绝缘强度 | :1500V/m |
| Dielectric Strength VAC | :1500V |
| 可燃性等级 | :UL94V-2 |
| 性别 | :Receptacle |
| 房屋类型 | :Receptacle |
| 材质 | :Nylon |
| 交配力 | :0.034N |
| No. of Rows | :3 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-40°C |
| Panel Cut-out Size | :26.67x16.64mm |
| Voltage Rating V AC | :250V |
| Wire Area Size Max | :1.68mm² |
| Wire Area Size Min | :0.597mm² |
| 耐压 | :3mV |
| 工作电压 | :250V |
| Weight (kg) | 0.006 |
| Tariff No. | 85369010 |
| 机构认证 | CSA, UL |
| Angle | Straight |
| Brand/Series | 1360 Series |
| Current, Rating | 9.5 A |
| Length, Overall | 1.02 " |
| Material, Housing | Nylon 6/6 |
| 安装孔尺寸 | 1.05×0.725 " |
| 触点数 | 12 |
| Pin Spacing | 0.198 " |
| Temperature, Operating | -40 to +105 °C |
| 端子 | Crimp |
| 类型 | Panel Socket |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
