Nichicon

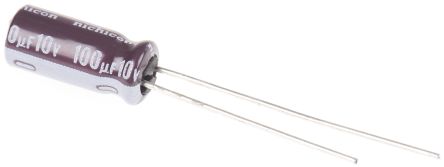

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| 电容 | 100 uF |
| 容差 | 20 % |
| 额定电压 | 10 V |
| 工作温度范围 | - 55 C to + 105 C |
| 端接类型 | Radial |
| 表壳直径 | 5 mm |
| 表壳长度 | 11 mm |
| 引线间距 | 2 mm |
| 产品 | Low Impedance Electrolytic Capacitors |
| 损耗因数DF | 0.2 |
| 泄漏电流 | 30 uA |
| 负载寿命 | 2000 hr |
| 纹波电流 | 160 mA |
| 系列 | PS |
| 工厂包装数量 | 200 |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 5 mm Dia. x 11 mm L |
| 产品范围 | :NICHICON - PS Series |
| 电容公差 | :± 20% |
| 直径 | :5mm |
| 身高 | :11mm |
| Capacitor Terminals | :Radial Leaded |
| Life Time @ Temperature | :1000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| SVHC | :No SVHC (20-Jun-2013) |
| External Length / Height | :11mm |
| 阻抗 | :1.50ohm |
| 引线直径 | :0.5mm |
| No. of Pins | :2 |
| Operating Lifetime | :3000h |
| Ripple Current AC | :160mA |
| Ripple Current Frequency | :120Hz |
| Ripple Current Temperature | :105°C |
| 终端类型 | :Wire Ended |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Voltage Rating V DC | :10V |
| Weight (kg) | 0.045 |
| Tariff No. | 85322200 |
| CaseSize | 5mmDia.x11mmL |
| LeadSpacing | 2mm |
| Material,Element | AluminumElectrolytic |
| 端子 | Radial |
| Voltage,Rating | 10VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
