XP POWER

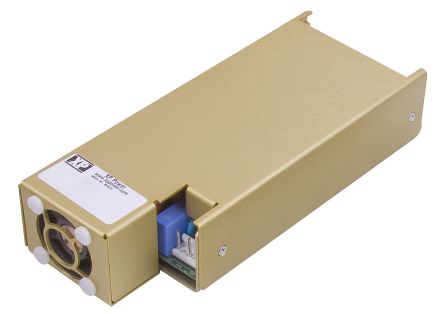

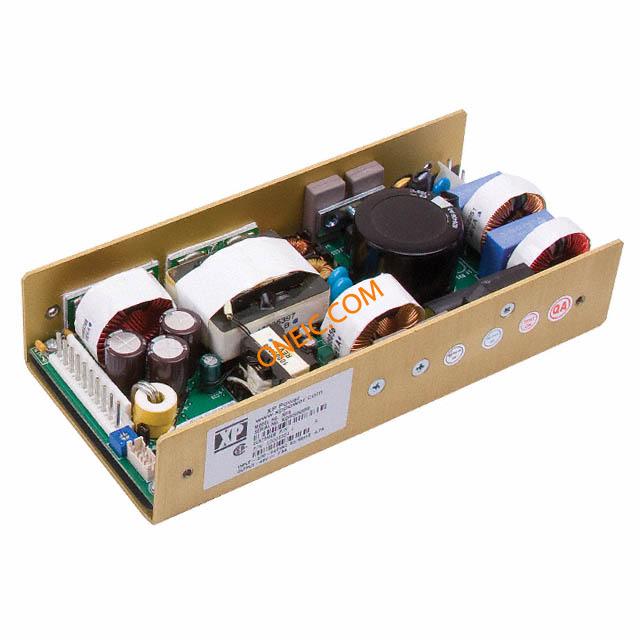

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Adjustable, Fixed |
| Input Voltage VAC | :85V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :24V |
| Output Current Max | :14.5A |
| Output Power Max | :350W |
| SVHC | :No SVHC (20-Jun-2013) |
| 应用范围 | :General Purpose |
| Approval Bodies | :CB, EN, TUV, UL |
| 外部深度 | :172mm |
| External Length / Height | :38.1mm |
| 外宽 | :81.3mm |
| 身高 | :38.1mm |
| 输入电压 | :85V AC to 264V AC |
| Inrush Current Max | :30A max @ 115 Vac, 60A max @ 230Vac |
| 泄漏电流 | :1mA |
| 长度 | :172mm |
| 负载调整率 | :1% |
| 安装类型 | :Chassis |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-10°C |
| 输出电流 | :14.5A |
| Output Current - Output 2 | :1A |
| Output Current Nom - Output 3 | :300mA |
| 输出功率 | :350W |
| Output Ripple and Noise Voltage pk-pk | :240 mV |
| 输出电压 | :24V |
| Output Voltage - Output 2 | :12V |
| Output Voltage Nom - Output 3 | :5V |
| Power Factor | :0.95 |
| 额定功率 | :350W |
| 电源类型 | :Switch Mode |
| Supply Current Max | :5mA |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| 宽度 | :81.3mm |
| Weight (kg) | 0.605 |
| Tariff No. | 85044030 |
| 输出数 | 1 |
| 类型 | Open Frame |
| 产品特点 | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input |
| 认证 | CB, CE |
| 标准包装 | 5 |
| 电压 - 输出1 | 24V |
| 尺寸/尺寸 | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
| 效率 | 87% |
| 功率（瓦特） | 350W (361W Forced Air) |
| 电流 - 输出（最大） | 14.5A |
| Minimum Load Required | No |
| 功率（瓦特） - 最大 | 350W (361W Forced Air) |
| 电压 - 电压 | 85 ~ 264 VAC |
| 工作温度 | -10°C ~ 70°C |
| 电压 - 隔离 | 3kV (3000V) |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
