XP POWER

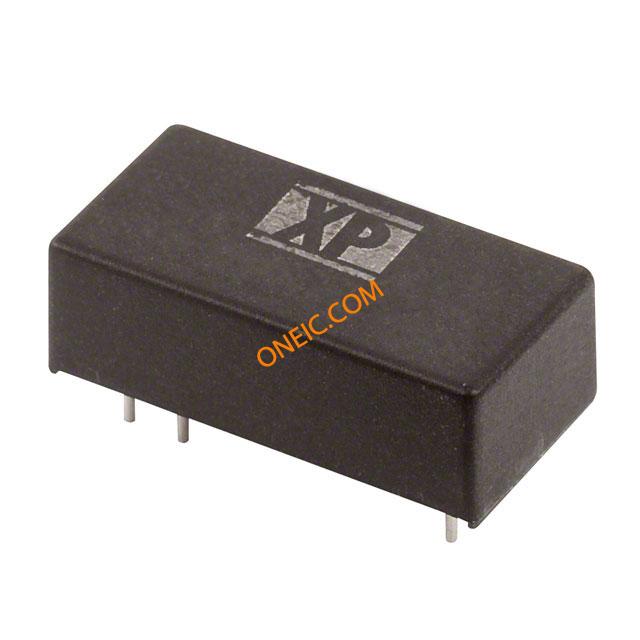

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品范围 | :XP POWER - LDU20 Series |
| LED Driver Mode | :Constant Current |
| Input Voltage Min | :7V |
| Input Voltage Max | :30V |
| 输出电流 | :600mA |
| Output Voltage Max | :28V |
| Output Power Max | :17W |
| DC / DC Converter Mounting | :Through Hole |
| Dimming Control Type | :Analogue, PWM |
| 深度 | :6.88mm |
| 效率 | :95% |
| 长度 | :20.32mm |
| No. of Outputs | :1 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +70°C |
| Output Current Max | :600mA |
| 输出功率 | :17W |
| Output Voltage Min | :2V |
| Output Voltage Nom. | :28V |
| Power Supply Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| 端接类型 | :Solder |
| 宽度 | :10.16mm |
| Weight (kg) | 0.0026 |
| Tariff No. | 85423990 |
| 尺寸/尺寸 | 0.80" L x 0.40" W x 0.27" H (20.3mm x 10.2mm x 6.9mm) |
| 输出数 | 1 |
| 调光 | Analog, PWM |
| 产品特点 | Remote On/Off, SCP |
| 安装类型 | Through Hole |
| 认证 | EN |
| 标准包装 | 25 |
| 功率（瓦特） | 17W |
| 电压 - 输出 | 2 ~ 28 V |
| 封装 | Tube |
| 重量 | 0.006 lb (2.72g) |
| 工作温度 | -40°C ~ 70°C |
| 电流 - 输出（最大） | 600mA |
| 电压 - 输入（最大） | 30V |
| 封装/外壳 | 14-DIP Module (4 Leads) |
| 电压 - 输入（最小值） | 7V |
| 类型 | Constant Current |
| 拓扑结构 | Buck |
| RoHS指令 | Lead free / RoHS Compliant |
