XP POWER

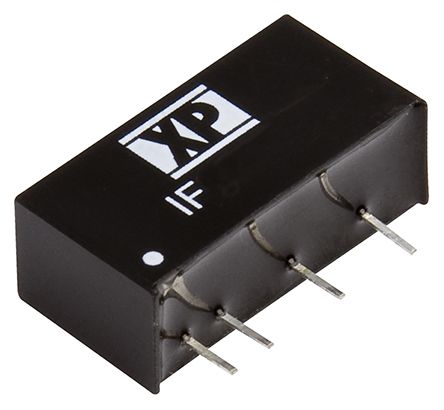

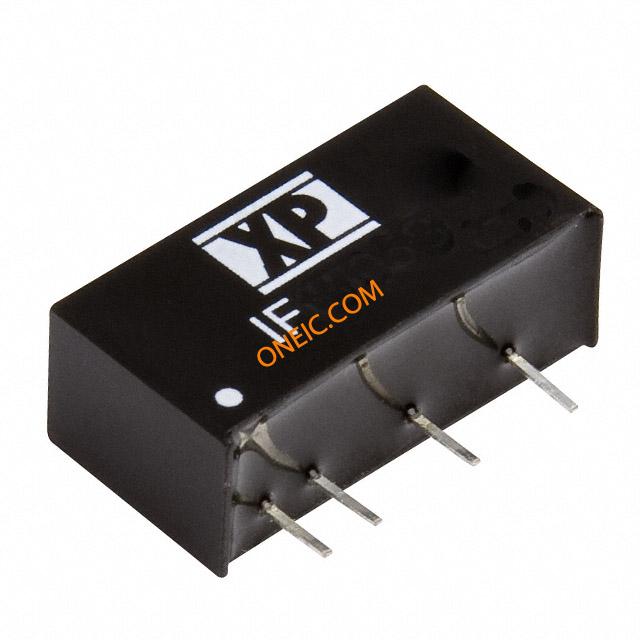

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| DC / DC Converter Type | :Isolated POL |
| DC / DC Converter Output Type | :Fixed |
| Input Voltage DC Min | :21.6V |
| Input Voltage DC Max | :26.4V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :5V |
| Output Current Max | :200mA |
| Output Power Max | :1W |
| DC / DC Converter Mounting | :Through Hole |
| 深度 | :19.5mm |
| 宽度 | :7.2mm |
| 身高 | :10mm |
| 效率 | :65% |
| 外部深度 | :10mm |
| External Length / Height | :19.5mm |
| 外宽 | :7.2mm |
| 输入电压 | :24V |
| 隔离电压 | :1kV |
| 线路调整 | :0.5% |
| 负载调整率 | :0.5% |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 输出电流 | :200mA |
| Output Ripple Voltage pk-pk | :50mV |
| 输出电压 | :5V |
| 额定功率 | :1W |
| SVHC | :No SVHC (20-Jun-2013) |
| 电源电压 | :24V |
| Weight (kg) | 0.07 |
| Tariff No. | 85044090 |
| 输出数 | 1 |
| 安装类型 | Through Hole |
| 类型 | Isolated Module |
| 标准包装 | 25 |
| 电压 - 输出1 | 5V |
| 尺寸/尺寸 | 0.77" L x 0.28" W x 0.50" H (19.5mm x 7.2mm x 12.6mm) |
| 封装 | Tube |
| 电流 - 输出（最大） | 200mA |
| 电压 - 输入（最大） | 26.4V |
| 封装/外壳 | 7-SIP Module (6 Leads) |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 输入（最小值） | 21.6V |
| 电压 - 隔离 | 1kV (1000V) |
| 功率（瓦） - 制造商系列 | 1W |
| 功率（瓦特） - 最大 | 1W |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
