XP POWER

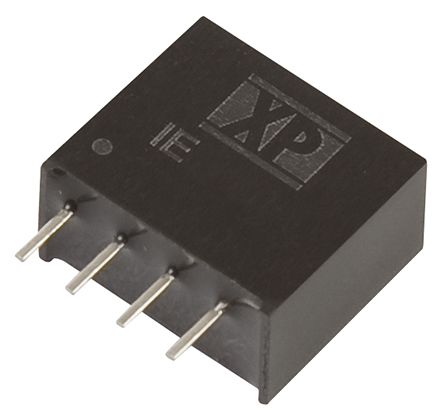

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| DC / DC Converter Type | :Isolated POL |
| DC / DC Converter Output Type | :Fixed |
| Input Voltage DC Min | :2.97V |
| Input Voltage DC Max | :3.63V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :24V |
| Output Current Max | :42mA |
| Output Power Max | :1W |
| DC / DC Converter Mounting | :Through Hole |
| 深度 | :11.68mm |
| 宽度 | :6.1mm |
| 身高 | :9.8mm |
| 效率 | :78% |
| 外部深度 | :9.65mm |
| External Length / Height | :11.68mm |
| 外宽 | :6.1mm |
| 输入电压 | :3.3V |
| 隔离电压 | :3kV |
| Off Load Current | :40mA |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 输出电流 | :42mA |
| Output Ripple Voltage pk-pk | :60mV |
| 输出电压 | :24V |
| 额定功率 | :1W |
| SVHC | :No SVHC (20-Jun-2013) |
| 电源电压 | :3.3V |
| Weight (kg) | 0.08 |
| Tariff No. | 85044090 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
