XP POWER

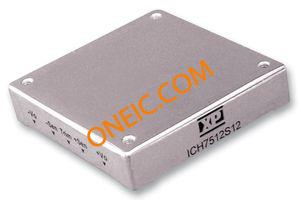

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| DC / DC Converter Type | :Isolated POL |
| DC / DC Converter Output Type | :Fixed |
| Input Voltage DC Min | :18V |
| Input Voltage DC Max | :36V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :12V |
| Output Current Max | :8.3A |
| Output Power Max | :100W |
| DC / DC Converter Mounting | :Through Hole |
| 深度 | :61mm |
| 宽度 | :57.9mm |
| 身高 | :12.7mm |
| Approvals / Standards | :- |
| Approval Bodies | :UL |
| 效率 | :85% |
| 外部深度 | :57.9mm |
| External Length / Height | :12.7mm |
| 外宽 | :61mm |
| Input Voltage Max | :36V |
| Input Voltage Min | :18V |
| 隔离电压 | :1.5kV |
| 线路调整 | :02% |
| 负载调整率 | :02% |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-40°C |
| 输出电流 | :8.3A |
| 输出电压 | :12V |
| 额定功率 | :100W |
| SVHC | :No SVHC (20-Jun-2013) |
| 电源电压 | :24V |
| 重量 | :100g |
| Weight (kg) | 0.1 |
| Tariff No. | 85044090 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
