XP POWER

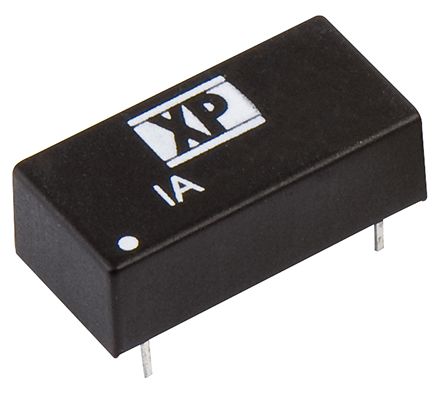

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| DC / DC Converter Type | :Isolated POL |
| DC / DC Converter Output Type | :Fixed |
| Input Voltage DC Min | :10.8V |
| Input Voltage DC Max | :13.2V |
| No. of Outputs | :2 |
| Output Voltage Nom. | :15V, -15V |
| Output Current Max | :33mA, 33mA |
| Output Power Max | :1W |
| DC / DC Converter Mounting | :Through Hole |
| 深度 | :20.32mm |
| 宽度 | :10.16mm |
| 身高 | :6.35mm |
| Efficiency Max | :80% |
| Input Voltage Max | :13.2V |
| Input Voltage Min | :10.8V |
| 隔离电压 | :1kV |
| 线路调整 | :1.2% |
| 负载调整率 | :8% |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 输出电流 | :33mA |
| Output Current - Output 2 | :-33mA |
| 输出电压 | :15V |
| Output Voltage + | :15VDC |
| Output Voltage - | :-15V |
| Output Voltage - Output 2 | :-15V |
| 额定功率 | :1W |
| SVHC | :No SVHC (20-Jun-2013) |
| 电源电压 | :12V |
| Weight (kg) | 0.002 |
| Tariff No. | 85044030 |
| 输出数 | 2 |
| 安装类型 | Through Hole |
| 功率（瓦） - 制造商系列 | 1W |
| 类型 | Isolated Module |
| 标准包装 | 25 |
| 电压 - 输出1 | 15V |
| 电压 - 输出2 | -15V |
| 尺寸/尺寸 | 0.80" L x 0.40" W x 0.25" H (20.3mm x 10.2mm x 6.4mm) |
| 效率 | 80% |
| 封装 | Tube |
| 电流 - 输出（最大） | 33mA |
| 电压 - 输入（最大） | 13.2V |
| 封装/外壳 | 6-DIP Module |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 输入（最小值） | 10.8V |
| 电压 - 隔离 | 1kV (1000V) |
| 其他名称 | 1470-1361-5 |
| 功率（瓦特） - 最大 | 1W |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
