XP POWER

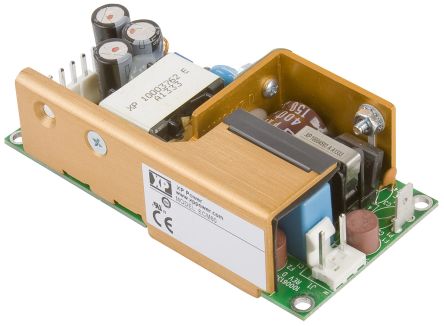

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :1 |
| Approvals / Standards | :CSA 22.2 No. 60601, EN 60601, UL 60601 |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :cUL, EN, IEC, UL |
| 效率 | :80% |
| 外部深度 | :38.5mm |
| External Length / Height | :114mm |
| 外宽 | :64mm |
| Frequency Max | :63Hz |
| Frequency Min | :47Hz |
| 身高 | :38.5mm |
| 输入频率 | :63Hz |
| 浪涌电流 | :40A |
| 长度 | :114mm |
| 线路调整 | :0.5% |
| 负载调整率 | :1.0% |
| 安装类型 | :Chassis |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-0°C |
| 输出电流 | :2.5A |
| Output Current Max | :2.50A |
| Output Current Min | :0.0A |
| 输出电压 | :24V |
| 额定功率 | :60W |
| 电源类型 | :Switch Mode |
| Storage Temperature Max | :85°C |
| Storage Temperature Min | :-20°C |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| Supply Voltage Min | :90V |
| Supply Voltage Typ | :110V AC, 230V AC |
| 宽度 | :64mm |
| Weight (kg) | 0.3 |
| Tariff No. | 85044090 |
