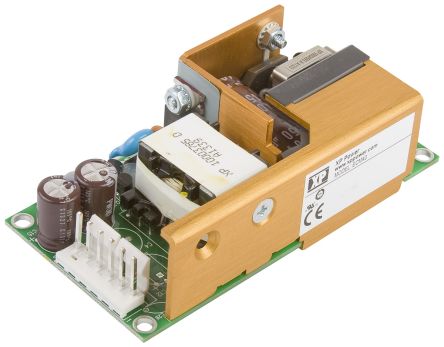

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :3 |
| Output Voltage Nom. | :5V, 24V, -12V |
| Output Current Max | :6A, 1A, 500mA |
| Output Power Max | :60W |
| Approvals / Standards | :CSA 22.2 No. 60601, EN 60601, ES 60601 |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :cUL, EN, IEC, UL |
| 效率 | :85% |
| 身高 | :30.5mm |
| 输入频率 | :440Hz |
| 泄漏电流 | :100µA |
| 长度 | :101.6mm |
| 线路调整 | :0.5% |
| 负载调整率 | :1% |
| 安装类型 | :Chassis |
| 输出电流 | :6A |
| Output Ripple and Noise Voltage pk-pk | :1% |
| 输出电压 | :5V |
| 电源类型 | :Switch Mode |
| 重量 | :150g |
| 宽度 | :50.8mm |
| Weight (kg) | 0.15 |
| Tariff No. | 85044090 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
