XP POWER

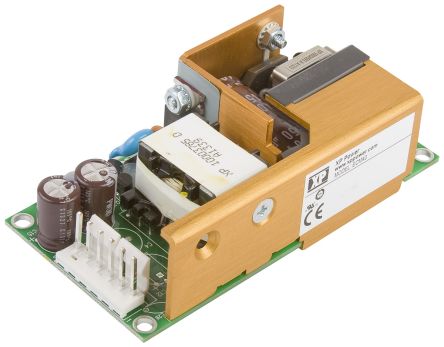

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :33V |
| Output Current Max | :1.2A |
| Approvals / Standards | :CSA 22.2 No. 60601, EN 60601, ES 60601 |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :cUL, EN, IEC, UL |
| 效率 | :85% |
| 外部深度 | :101.6mm |
| External Length / Height | :30.mm |
| 外宽 | :50.8mm |
| Frequency Max | :63Hz |
| Frequency Min | :47Hz |
| 身高 | :30.5mm |
| 输入频率 | :440Hz |
| Input Voltage Max | :264V |
| Input Voltage Min | :90V |
| 长度 | :101.6mm |
| 线路调整 | :0.5% |
| 安装类型 | :Chassis |
| 输出电流 | :1.2A |
| Output Ripple and Noise Voltage pk-pk | :1% |
| 输出电压 | :33V |
| 额定功率 | :40W |
| 电源类型 | :Switch Mode |
| Supply Frequency Max | :63Hz |
| Supply Frequency Min | :47Hz |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| Supply Voltage Min | :90V |
| Supply Voltage Typ | :110V AC, 230V AC |
| 重量 | :150g |
| 宽度 | :50.8mm |
| Weight (kg) | 0.15 |
| Tariff No. | 85044030 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
