XP POWER

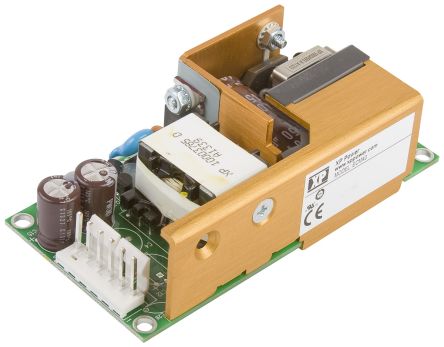

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :9V |
| Output Current Max | :4.4A |
| Output Power Max | :40W |
| Approvals / Standards | :CSA 22.2 No. 60601, EN 60601, ES 60601 |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :cUL, EN, IEC, UL |
| 效率 | :85% |
| Frequency Max | :63Hz |
| Frequency Min | :47Hz |
| 身高 | :30mm |
| 输入频率 | :440Hz |
| 输入电压 | :90V AC to 264V AC , 120V DC to 370V DC |
| Input Voltage Max | :264V |
| Input Voltage Min | :90V |
| 长度 | :101.6mm |
| 线路调整 | :0.5% |
| 安装类型 | :Chassis |
| 输出电流 | :4.4A |
| Output Ripple and Noise Voltage pk-pk | :1% |
| 输出电压 | :9V |
| 额定功率 | :40W |
| 电源类型 | :Switch Mode |
| Supply Frequency Max | :63Hz |
| Supply Frequency Min | :47Hz |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| Supply Voltage Min | :90V |
| Supply Voltage Typ | :110V AC, 230V AC |
| 重量 | :150g |
| 宽度 | :50.8mm |
| Weight (kg) | 0.15 |
| Tariff No. | 85044030 |
| 输出数 | 1 |
| 类型 | Open Frame |
| 产品特点 | Universal Input |
| 应用范围 | ITE (Commercial), Medical |
| 认证 | CB, CE |
| 标准包装 | 1 |
| 电压 - 输出1 | 9V |
| 尺寸/尺寸 | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
| 功率（瓦特） | 40W |
| 电流 - 输出（最大） | 4.4A |
| Minimum Load Required | No |
| 功率（瓦特） - 最大 | 40W |
| 电压 - 电压 | 90 ~ 264 VAC |
| 工作温度 | 0°C ~ 70°C |
| 电压 - 隔离 | 4kV (4000V) |
| 其他名称 | 1470-1233 |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
