XP POWER

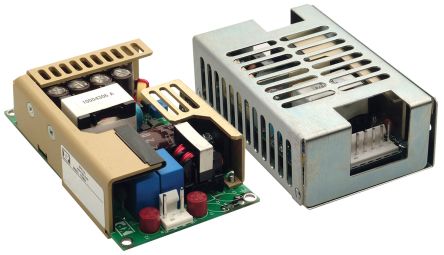

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :48V |
| Output Current Max | :2.1A |
| Output Power Max | :100.8W |
| Approvals / Standards | :CSA 22.2 No. 60601, EN 60601, ES 60601 |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :cUL, EN, IEC, UL |
| 效率 | :85% |
| 外部深度 | :114.3mm |
| External Length / Height | :30.5mm |
| 外宽 | :63.5mm |
| Frequency Max | :63Hz |
| Frequency Min | :47Hz |
| 身高 | :30.5mm |
| 输入频率 | :63Hz |
| 输入电压 | :90V AC to 264V AC , 120V DC to 370V DC |
| Input Voltage DC Max | :370VDC |
| Input Voltage DC Min | :120VDC |
| Input Voltage Max | :264V |
| Input Voltage Min | :90V |
| 长度 | :114.3mm |
| 线路调整 | :0.5% |
| 负载调整率 | :1% |
| 安装类型 | :Chassis |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :0°C |
| 输出电流 | :2.1A |
| Output Current - Output 2 | :2.1A |
| 输出功率 | :100W |
| Output Ripple and Noise Voltage pk-pk | :1% |
| 输出电压 | :48V |
| 额定功率 | :100W |
| 电源类型 | :Switch Mode |
| Supply Frequency Max | :63Hz |
| 宽度 | :63.5mm |
| Weight (kg) | 0.18 |
| Tariff No. | 85044030 |
| 输出数 | 1 |
| 类型 | Open Frame |
| 产品特点 | Universal Input |
| 应用范围 | ITE (Commercial), Medical |
| 认证 | CB, CE |
| 标准包装 | 5 |
| 电压 - 输出1 | 48V |
| 尺寸/尺寸 | 4.50" L x 2.50" W x 1.06" H (114.3mm x 63.5mm x 27.0mm) |
| 功率（瓦特） | 100W |
| 电流 - 输出（最大） | 2.1A |
| Minimum Load Required | No |
| 功率（瓦特） - 最大 | 101W |
| 电压 - 电压 | 90 ~ 264 VAC |
| 工作温度 | 0°C ~ 70°C |
| 电压 - 隔离 | 4kV (4000V) |
| RoHS指令 | Lead free / RoHS Compliant |
