XP POWER

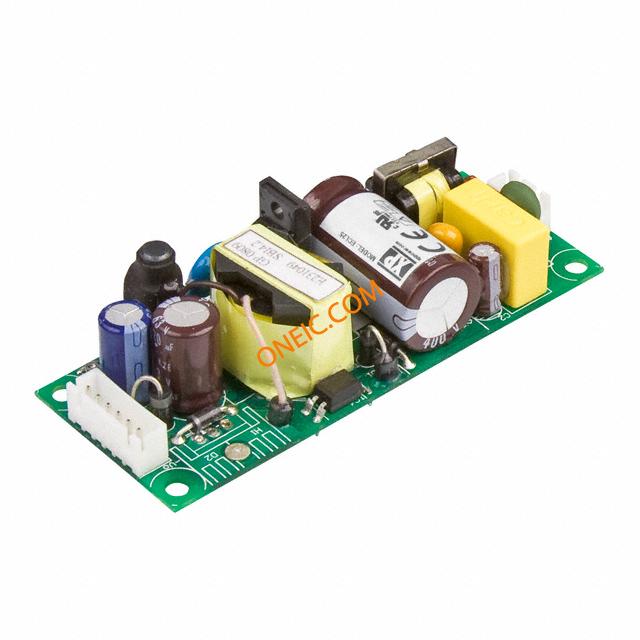

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Adjustable, Fixed |
| Input Voltage VAC | :85V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :9V |
| Output Current Max | :2.8A |
| Output Power Max | :25W |
| SVHC | :No SVHC (20-Jun-2013) |
| 应用范围 | :General Purpose |
| Approval Bodies | :CSA, cUL, EN, UL |
| 效率 | :80% |
| 外部深度 | :25.4mm |
| External Length / Height | :88.9mm |
| 外宽 | :35.6mm |
| 身高 | :88.9mm |
| 输入电流 | :0.4mA |
| 输入频率 | :63Hz |
| 输入电压 | :85V AC to 264V AC , 120V DC to 370V DC |
| 浪涌电流 | :20A |
| 隔离电压 | :3000V |
| 长度 | :25.4mm |
| 安装类型 | :Chassis |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| 输出电流 | :2.8A |
| 输出电压 | :9V |
| 峰值输出电流 | :3.64A |
| 额定功率 | :25W |
| 电源类型 | :Switch Mode |
| Supply Frequency Max | :63Hz |
| Supply Frequency Min | :47Hz |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| Supply Voltage Min | :85V |
| Supply Voltage Typ | :110V AC, 230V AC |
| 宽度 | :35.6mm |
| Weight (kg) | 0.067 |
| Tariff No. | 85044030 |
| 输出数 | 1 |
| 类型 | Open Frame |
| 产品特点 | Adjustable Output, DC Input Capable, Universal Input |
| 标准包装 | 1 |
| 电压 - 输出1 | 9V |
| 尺寸/尺寸 | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
| 功率（瓦特） | 25W |
| 电流 - 输出（最大） | 2.8A |
| Minimum Load Required | No |
| 功率（瓦特） - 最大 | 25W |
| 电压 - 电压 | 85 ~ 264 VAC |
| 工作温度 | -20°C ~ 70°C |
| 电压 - 隔离 | 3kV (3000V) |
| 其他名称 | 1470-1192 |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
