XP POWER

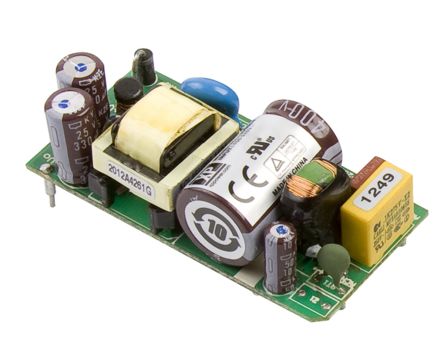

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Adjustable, Fixed |
| Input Voltage VAC | :85V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :5V |
| Output Current Max | :3A |
| Output Power Max | :15W |
| 深度 | :62mm |
| 宽度 | :30.7mm |
| 身高 | :24.4mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, cUL, EN, UL |
| 效率 | :78% |
| 外部深度 | :63.5mm |
| External Length / Height | :24.4mm |
| 外宽 | :31.75mm |
| 输入频率 | :63Hz |
| 输入电压 | :85V AC to 264V AC , 120V DC to 370V DC |
| Inrush Current Max | :20A @ 115VAC , 40A @230VAC |
| 长度 | :63.5mm |
| 线路调整 | :0.5% |
| 负载调整率 | :1% |
| 安装类型 | :PCB |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :0°C |
| 输出电流 | :3A |
| 输出功率 | :15W |
| 输出电压 | :5V |
| 峰值输出电流 | :3.90A |
| 额定功率 | :15W |
| 电源类型 | :Switch Mode |
| Supply Frequency Max | :63Hz |
| Supply Frequency Min | :47Hz |
| 电源电压 | :264V |
| Supply Voltage Max | :264VAC |
| Supply Voltage Min | :85VAC |
| Supply Voltage Typ | :110V AC, 230V AC |
| Weight (kg) | 0.044 |
| Tariff No. | 85044030 |
| 输出数 | 1 |
| 产品特点 | OVP, SCP |
| 认证 | CSA, cUL, EN, IEC, UL |
| 功率（瓦特） - 最大 | 15W |
| 电压 - 输出1 | 5V |
| 尺寸/尺寸 | 2.44" L x 1.21" W x 0.96" H (62.0mm x 30.7mm x 24.4mm) |
| 重量 | 0.077 lb (34.93g) |
| 功率（瓦特） | 15W |
| 电流 - 输出（最大） | 3A |
| 应用范围 | Commercial |
| 电压 - 电压 | 85 ~ 264 VAC |
| 工作温度 | -20°C ~ 70°C |
| 标准包装 | 5 |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
