XP POWER

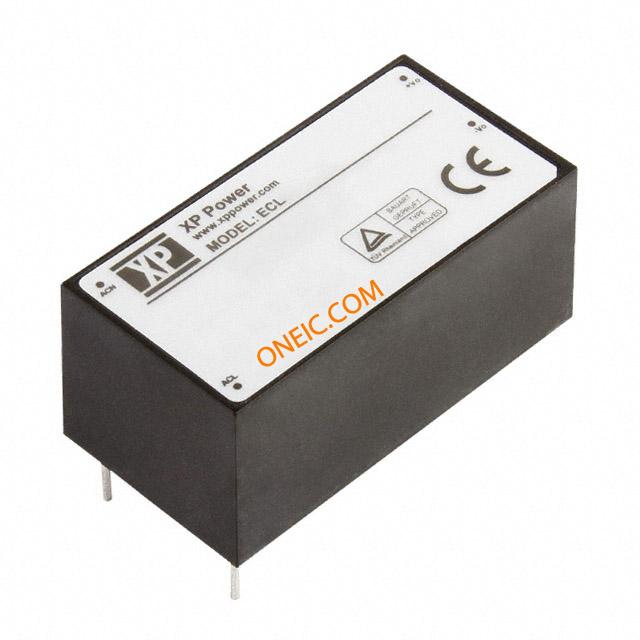

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Adjustable, Fixed |
| Input Voltage VAC | :85V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :15V |
| Output Current Max | :330mA |
| Output Power Max | :5W |
| 深度 | :52.4mm |
| 宽度 | :27.2mm |
| 身高 | :23mm |
| SVHC | :No SVHC (20-Jun-2013) |
| 效率 | :80% |
| 输入电压 | :85V AC to 264V AC , 120V DC to 370V DC |
| Input Voltage DC Max | :370VDC |
| Input Voltage DC Min | :120VDC |
| Input Voltage Max | :264V |
| Input Voltage Min | :85V |
| 长度 | :27.2mm |
| 输出电流 | :330mA |
| 输出电压 | :15V |
| 峰值输出电流 | :0.44A |
| 额定功率 | :5W |
| Supply Voltage Typ | :110V AC, 230V AC |
| Weight (kg) | 0.06 |
| Tariff No. | 85044030 |
| 输出数 | 1 |
| 负载调整率 | ±1% |
| 产品特点 | OVP, SCP |
| 安装类型 | Through Hole |
| 认证 | CSA, cUL, EN, IEC, UL |
| 功率（瓦特） - 最大 | 5W |
| 线路调整 | ±0.5% |
| 电压 - 输出1 | 15V |
| 尺寸/尺寸 | 2.06" L x 1.07" W x 0.91" H (52.4mm x 27.2mm x 23.0mm) |
| 重量 | 0.132 lb (59.87g) |
| 功率（瓦特） | 5W |
| 电流 - 输出（最大） | 330mA |
| 应用范围 | Commercial |
| 电源类型 | Switching (Closed Frame) |
| 电压 - 电压 | 85 ~ 264 VAC |
| 工作温度 | -20°C ~ 70°C |
| 标准包装 | 5 |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
