XP POWER

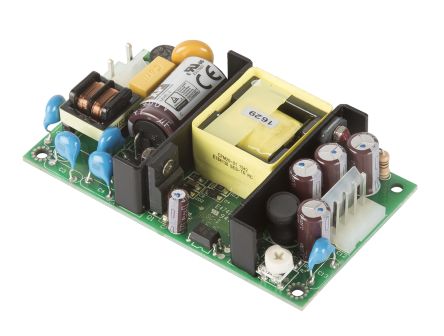

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Power Supply Output Type | :Adjustable, Fixed |
| Input Voltage VAC | :85V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :15V |
| Output Current Max | :1.4A |
| Output Power Max | :20W |
| SVHC | :No SVHC (20-Jun-2013) |
| 应用范围 | :General Purpose |
| Approval Bodies | :EN |
| 外部深度 | :88.9mm |
| External Length / Height | :20.32mm |
| 外宽 | :50.8mm |
| Frequency Max | :63Hz |
| Frequency Min | :47Hz |
| 身高 | :20.32mm |
| 输入频率 | :63Hz |
| 输入电压 | :85V AC to 264V AC , 120V DC to 370V DC |
| Input Voltage DC Max | :370VDC |
| Input Voltage DC Min | :120VDC |
| Input Voltage Max | :264V |
| Input Voltage Min | :90V |
| 长度 | :88.9mm |
| 线路调整 | :0.5% |
| 安装类型 | :PCB |
| 输出电流 | :1.4A |
| 输出功率 | :20W |
| 输出电压 | :15V |
| 额定功率 | :20W |
| 电源类型 | :Switch Mode |
| Supply Frequency Max | :63Hz |
| Supply Frequency Min | :47Hz |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| Supply Voltage Min | :90V |
| Supply Voltage Typ | :110V AC, 230V AC |
| 宽度 | :50.8mm |
| Weight (kg) | 0.084 |
| Tariff No. | 85044030 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
