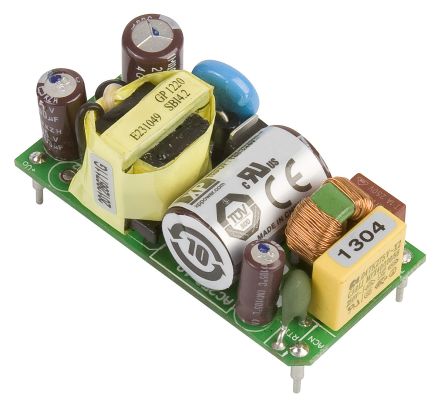

图片仅供参考,产品以实物为准
#1 |
数量:5 |
|
最小起订量:1 英国伦敦 当天发货，5-8个工作日送达. |
|
| 规格书 |
 |
| 文档 |
ECL Series CB Report ECL Series TUV Certificate ECL Series UL Certificate ECL Series Declaration of Conformity ECL05_10-P.igs ECL05_10-P.stp |
| Power Supply Output Type | :Adjustable, Fixed |
| Input Voltage VAC | :85V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :3.3V |
| Output Current Max | :2.6A |
| Output Power Max | :8.6W |
| 深度 | :50.8mm |
| 宽度 | :25.4mm |
| 身高 | :18.46mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, cUL, EN, UL |
| 效率 | :72% |
| 外部深度 | :22.86mm |
| External Length / Height | :50.8mm |
| 外宽 | :25.4mm |
| 输入电流 | :0.2A |
| 输入电压 | :85V AC to 264V AC , 120V DC to 370V DC |
| 浪涌电流 | :40A |
| 长度 | :22.86mm |
| 安装类型 | :PCB |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :0°C |
| 输出电流 | :2.6A |
| 输出功率 | :8.6W |
| 输出电压 | :3.3V |
| 峰值输出电流 | :3.38A |
| 额定功率 | :10W |
| 电源类型 | :Switch Mode |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| Supply Voltage Min | :85V |
| Supply Voltage Typ | :110V AC, 230V AC |
| 开关频率 | :70 kHz |
| Weight (kg) | 0.026 |
| Tariff No. | 85044030 |
| 输出数 | 1 |
| 负载调整率 | ±1% |
| 产品特点 | OVP, SCP |
| 认证 | CSA, cUL, EN, IEC, UL |
| 功率（瓦特） - 最大 | 9W |
| 线路调整 | ±0.5% |
| 电压 - 输出1 | 3.3V |
| 尺寸/尺寸 | 2.00" L x 1.00" W x 0.90" H (50.8mm x 25.4mm x 22.9mm) |
| 重量 | 0.057 lb (25.85g) |
| 功率（瓦特） | 10W |
| 电流 - 输出（最大） | 2.6A |
| 应用范围 | Commercial |
| 电压 - 电压 | 85 ~ 264 VAC |
| 工作温度 | -20°C ~ 70°C |
| 标准包装 | 5 |
| RoHS指令 | Lead free / RoHS Compliant |
